Without Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

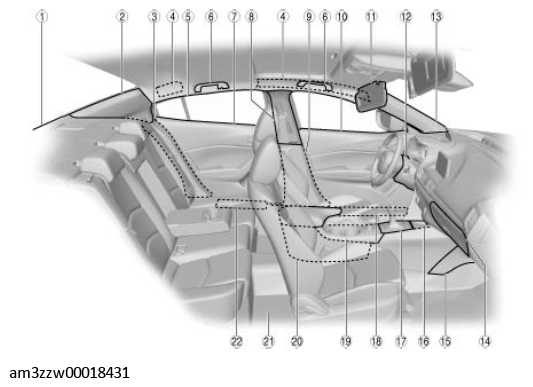

Fig 1: Interior Trim Parts Location - Without Electric Parking Brake

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear package trim (Sedan (4SD)) (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
2	C-piliar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3	Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
4	Shock absorbing pad (See SHOCK ABSORBING PAD REMOVAL/INSTALLATION .)
5	Headliner (See HEADLINER REMOVAL/INSTALLATION .)
6	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
7	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY .)
8	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
9	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
10	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
11	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
12	Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
13	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
14	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
15	Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
16	Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
17	Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
18	Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
19	Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
20	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .) (See REAR CONSOLE DISASSEMBLY/ASSEMBLY .) (See CONSOLE LID REMOVAL/INSTALLATION .)
21	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION .)
22	Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
