Antenna Feeder No. 2 Installation

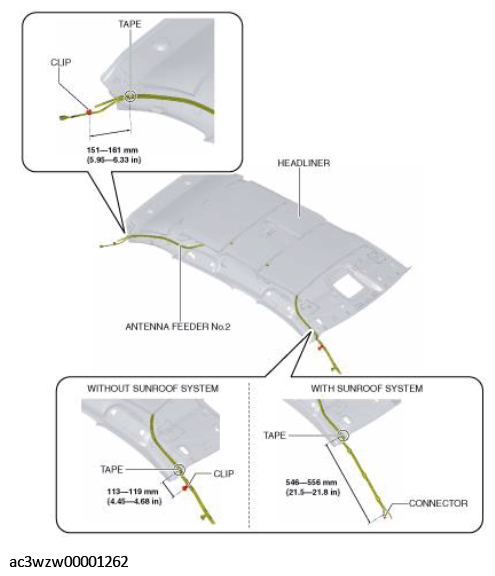

Align antenna feeder No. 2 with the dimension shown in the figure, adhere tape to the tape adhering position of the headliner, and install antenna feeder No. 2.

Fig 1: Installing Antenna Feeder No. 2 Clip
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
2. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
5. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
6. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
7. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
8. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
9. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
10. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
11. Lower anchor installation bolt on the rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
12. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
13. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
14. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
15. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
16. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
17. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
18. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
19. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
20. Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
21. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
22. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
