B-Pillar Upper Trim Removal/Installation

  1. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    4. Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    5. Upper anchor installation bolts on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.

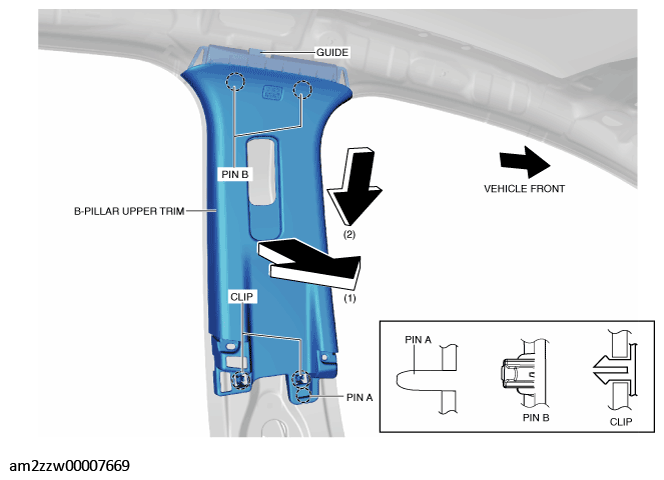

  3. Grasp the shaded area shown in the figure, and pull the B-pillar upper trim in the direction of the arrow (1) while detaching clips, pin A, pins B.
    Fig 1: Pulling B-Pillar Upper Trim
    G11434463Courtesy of MAZDA MOTORS CORP.
  4. Remove the B-pillar upper trim in the direction of the arrow (2) shown in the figure while detaching the guide.
  5. Install in the reverse order of removal.
