Rear Package Tray Removal/Installation

  1. Unhook the hooks from the strap hangers.

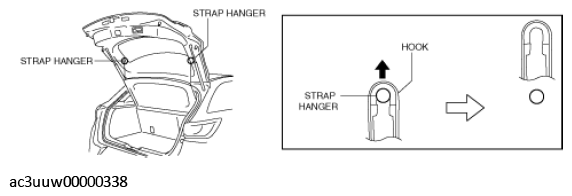

    Fig 1: Removing Hooks From Strap Hangers
    G11434588Courtesy of MAZDA MOTORS CORP.
  2. Hold the shaded area shown in the figure, pull the rear package tray in the order of arrows (1) and (2) and remove it from the pins.

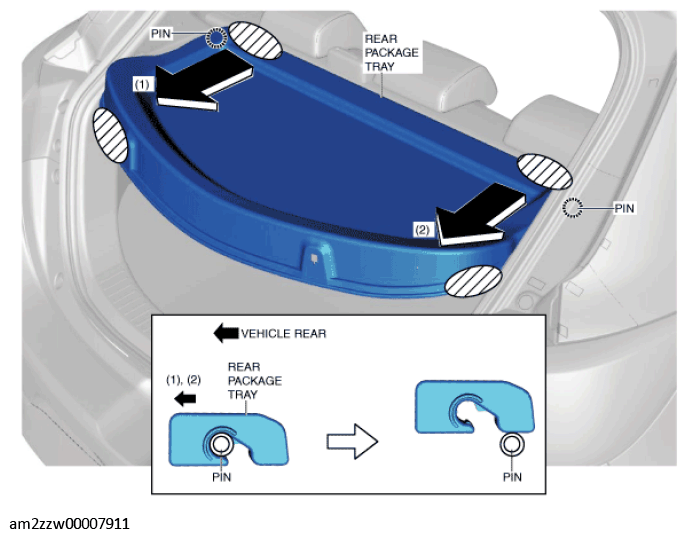

    Fig 2: Pulling Rear Package Tray
    G11434589Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
