Trunk End Trim Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    4. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
    5. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
  3. Partially peel back the weatherstrip.

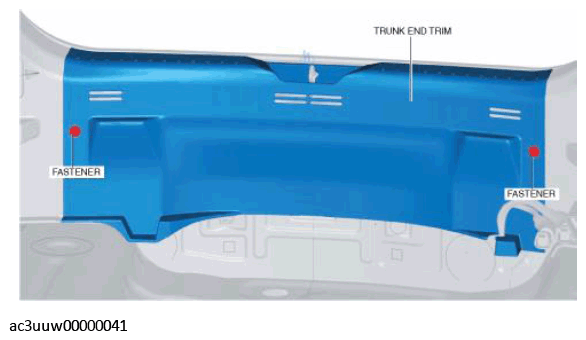

  4. Remove the fasteners.
    Fig 1: Removing Fasteners
    G11434616Courtesy of MAZDA MOTORS CORP.

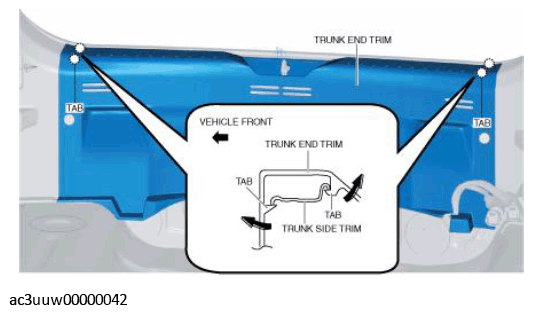

  5. Move the trunk end trim in the directions of the arrows shown in the figure and detach the trunk end trim tabs from the trunk side trim.
    Fig 2: Moving Trunk End Trim
    G11434617Courtesy of MAZDA MOTORS CORP.

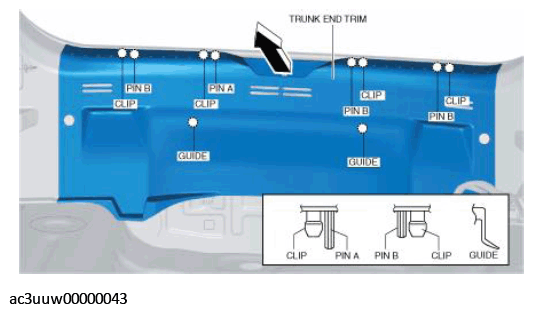

  6. Move the trunk end trim in the direction of the arrow shown in the figure, remove it while detaching clips, pin A, pins B, and the guides.
    Fig 3: Moving Trunk End Trim
    G11434618Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
