B-Pillar Lower Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Partially peel back the seaming welt.
  4. Grasp the shaded areas shown in the figure, and pull the B-pillar lower trim in the direction of the arrow in the order of (1), (2) while detaching hooks, pins A.

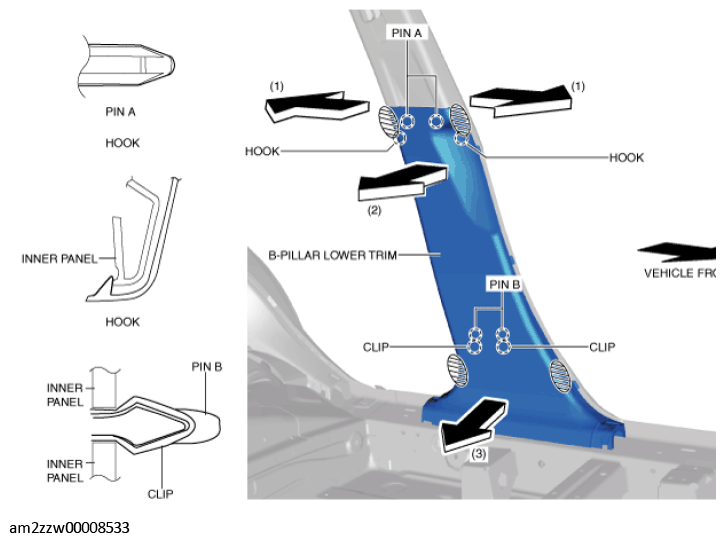

    Fig 1: Pulling B-Pillar Lower Trim
    G11434462Courtesy of MAZDA MOTORS CORP.
  5. Grasp the shaded area shown in the figure, and pull the B-pillar lower trim in the direction of the arrow (3) while detaching the clips, pins B.
  6. Install in the reverse order of removal.
