Antenna Feeder No. 2 Removal

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
3. Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
8. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
9. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
11. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
12. Lower anchor installation bolt on the rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
13. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
14. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
15. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
16. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
17. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
18. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
19. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
20. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
21. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
22. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
Peel off the tape and remove antenna feeder No. 2.

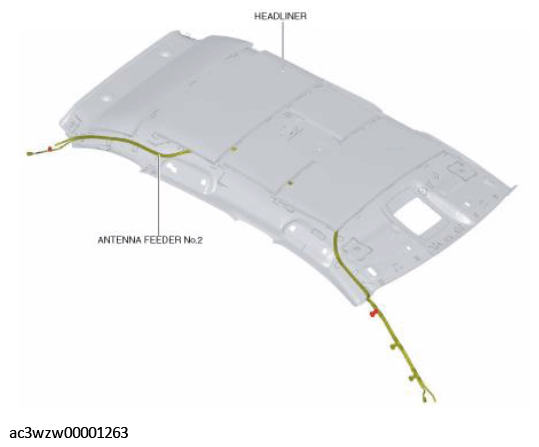

Fig 1: Removing Antenna Feeder No. 2
Courtesy of MAZDA MOTORS CORP.
