Door Sash Film Removal

  1. Partially peel back the glass run channel.
  2. Partially peel back the door weatherstrip.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
    4. Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
    5. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    6. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    7. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    8. Sliding door quarter glass (See SLIDING DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
    9. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
  4. Peel off the rear sash film by pulling it outward from one end.

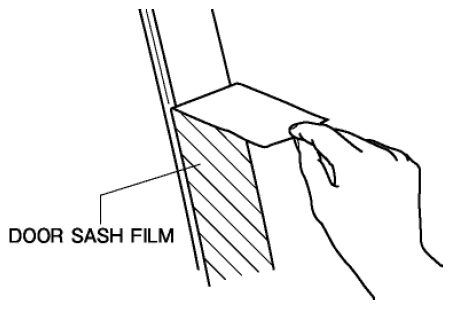

    Fig 1: Peeling Off Rear Sash Film
    G08153178
    NOTE:
    • Slowly remove the door sash film since it may tear easily.
