Front Door Trim Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the caps then remove the screw A.

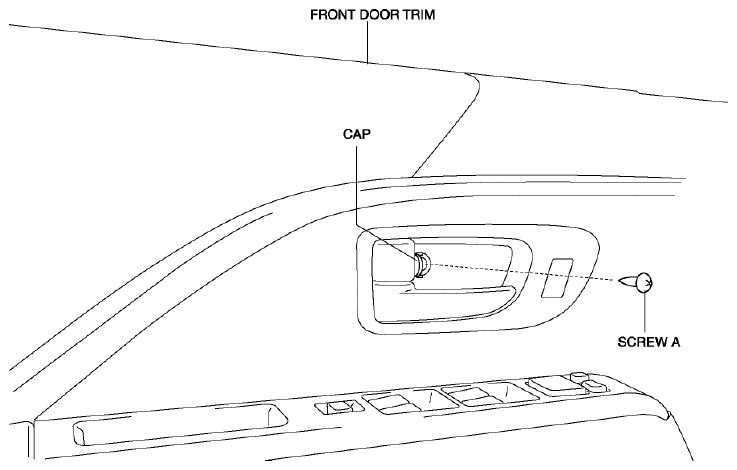

    Fig 1: Identifying Front Door Trim, Caps And Screw A
    G08153228
  3. Pull the inner handle cover in the direction of the arrow (1), (2) shown in the figure, detach the tab B.

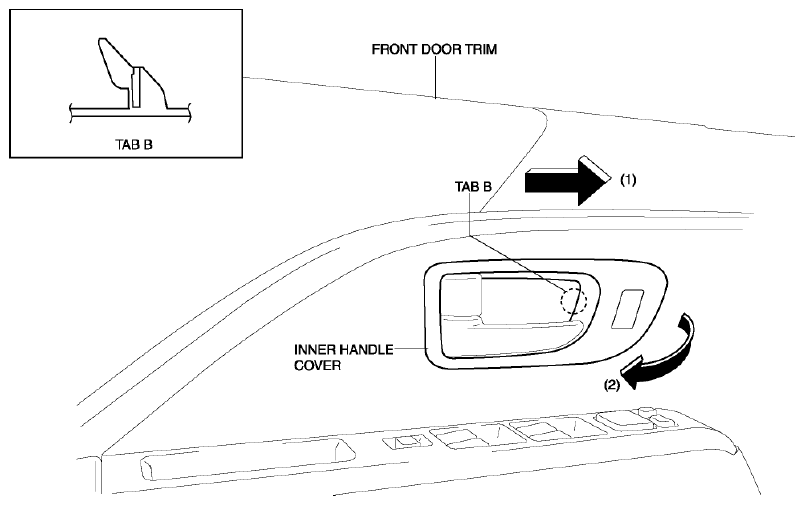

    Fig 2: Pulling Inner Handle Cover
    G08153229
  4. Disconnect the door lock switch connector, then remove the inner handle cover.

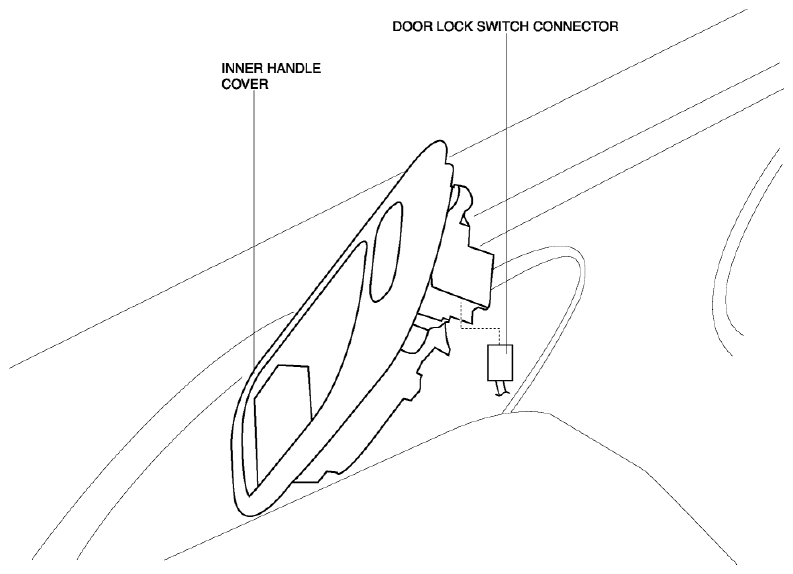

    Fig 3: Identifying Door Lock Switch Connector And Inner Handle Cover
    G08153230
  5. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  6. Remove the cover, then remove the screw C.

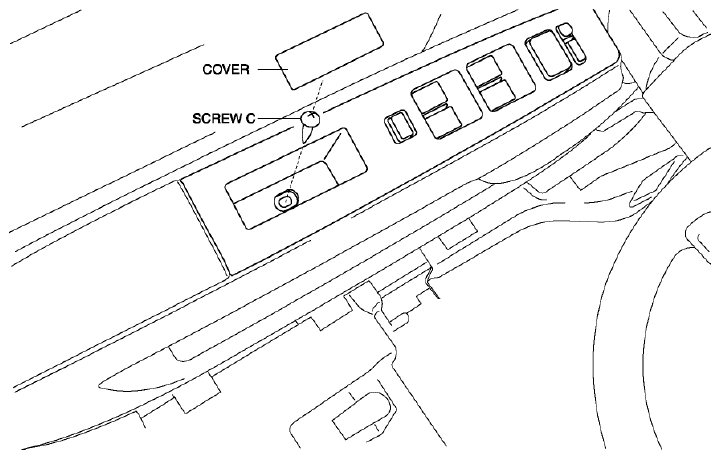

    Fig 4: Identifying Cover And Screw C
    G08153231
  7. Pull in the direction of the arrow (3), (4), (5) shown in the figure and remove clips D from the front door trim.

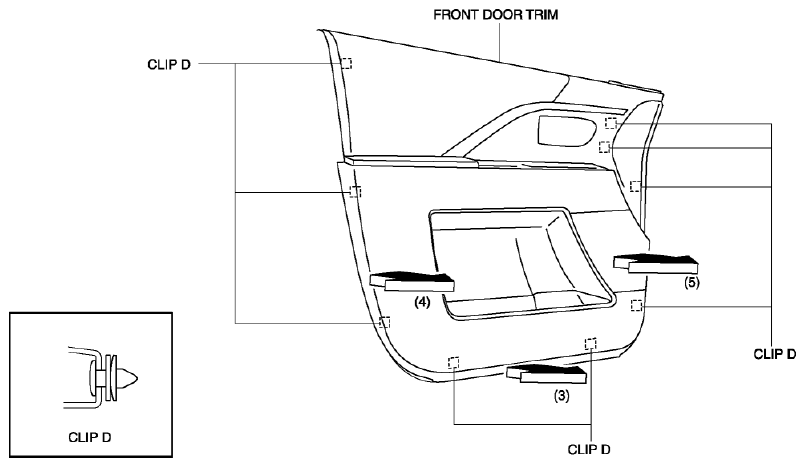

    Fig 5: Removing Clips D From Front Door Trim
    G08153232
  8. Pull the front door trim in the direction of the arrow (6) shown in the figure.

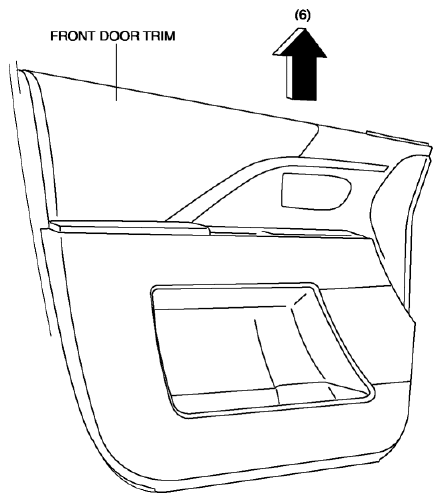

    Fig 6: Pulling Front Door Trim
    G08153233
  9. Disconnect the driver-side power outer mirror switch connector and driver-side power window main switch connector.
  10. Remove the front door trim.
  11. Install in the reverse order of removal.
