Side Door Garnish Removal/Installation

  1. Pull the front side door garnish in the direction of the arrow and detach the clips A and pins B.

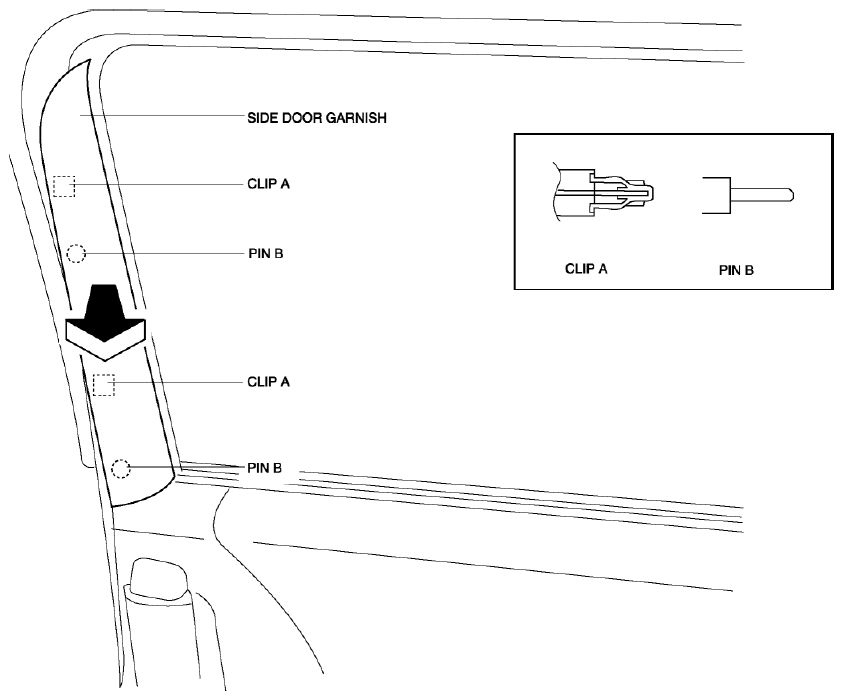

    Fig 1: Pulling Front Side Door Garnish
    G08153267
  2. Remove the side door garnish.
  3. Install in the reverse order of removal.
