Rear Side Trim Removal/Installation

  1. Disconnect the negative battery cable.
  2. Fully open the sliding door.
  3. Slide door lock knob to the LOCK position.
  4. Pull the rear side trim in the direction of the arrow (1), (2), (3), (4) and detach the clips A, clips B, pin C and clip D.

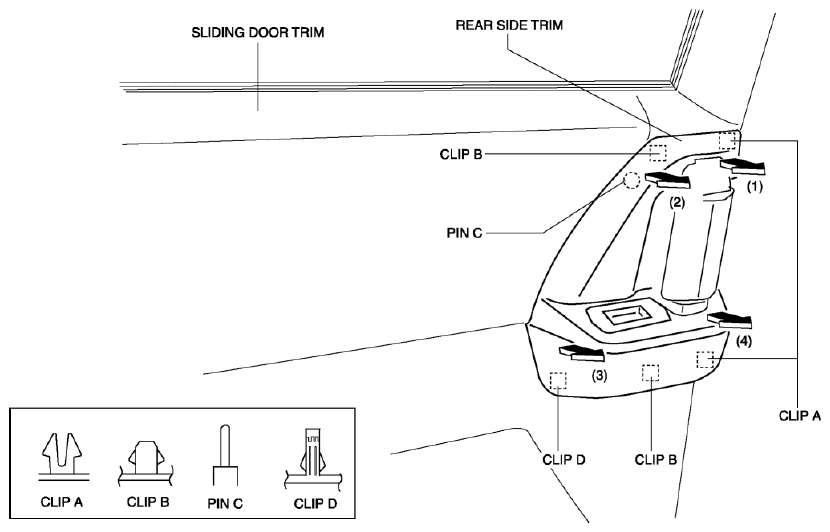

    Fig 1: Pulling Rear Side Trim
    G08153265
  5. Remove the rear side trim.
  6. Disconnect the power window subswitch connector.
  7. Pull the power window subswitch in the direction of the arrow (6) shown in the figure and remove it while detaching tabs in the direction of the arrow (5).
    Fig 2: Pulling Power Window Subswitch
    G08153266
  8. Install in the reverse order of removal.
