Front BELTLINE Molding Removal/Installation
- Fully open the front door glass.
- Disconnect the negative battery cable.
- Remove the following parts:
- Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

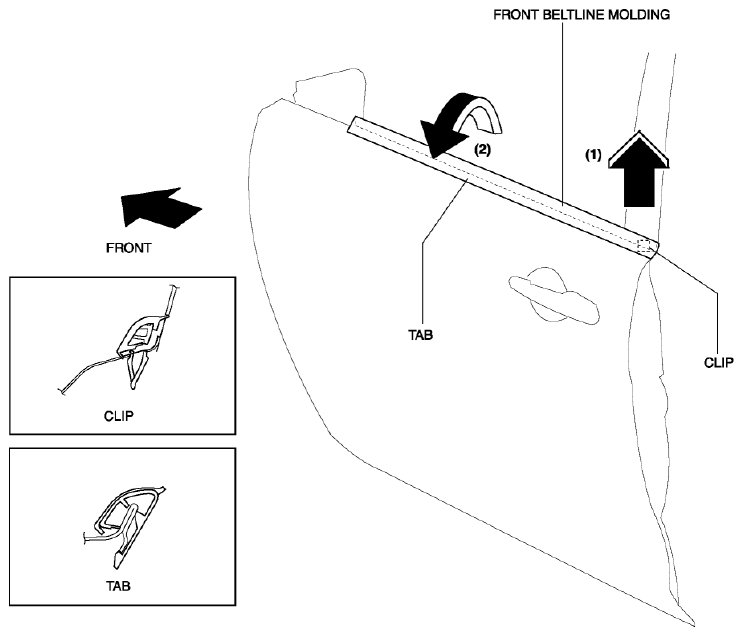

- Remove clip using a fastener remover and pull the front beltline molding in the direction of the arrow (1) shown in the figure.
- Rotate the front beltline molding in the direction of the arrow (2) shown in the figure and remove it while detaching tab.
- Install in the order of removal.
