Rear BELTLINE Molding Removal/Installation
- Fully open the rear door glass.
- Remove the following parts:
- Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
- Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
- Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)

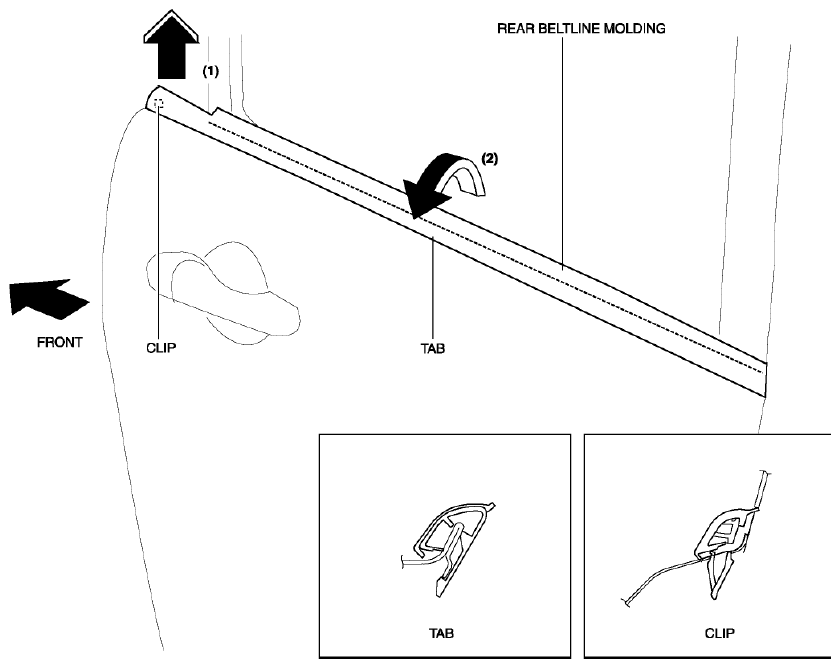

- Remove clip using a fastener remover and pull up the rear beltline molding in the direction of the arrow (1) shown in the figure.
- Rotate the rear beltline molding in the direction of the arrow (2) shown in the figure and remove it while detaching tab.
- Install in the reverse order of removal.
