Inner Garnish Removal/Installation

  1. Disconnect the negative battery cable. (Vehicles with tweeter)
  2. Pull the inner garnish in the direction of the arrow shown in the figure and remove it while detaching clips.

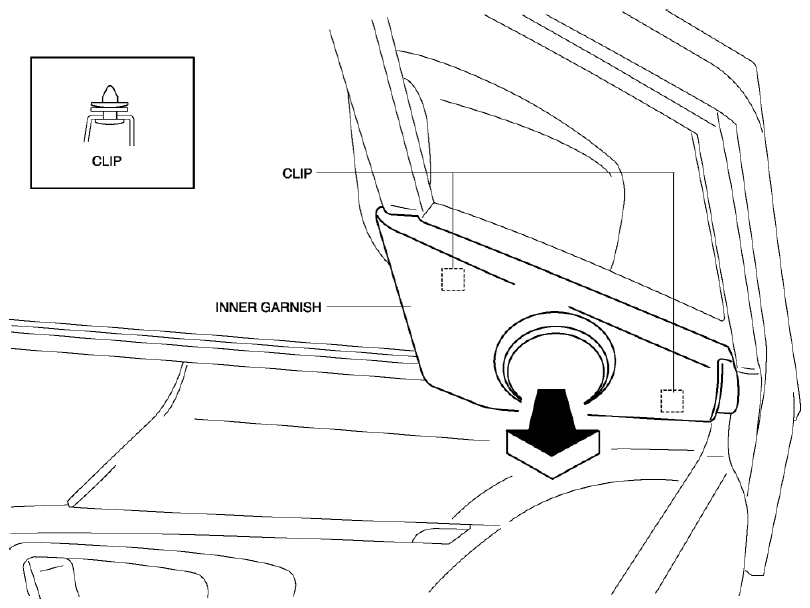

    Fig 1: Pulling Inner Garnish
    G08153211
  3. Disconnect the front tweeter connector. (Vehicles with tweeter)
  4. Remove the inner garnish.
  5. Install in the reverse order of removal.
