Door Sash Film Installation

Remove any grease or dirt from the affixing surface of the door.
Cut away the unused portion along the dotted lines.

Fig 1: Identifying Unused Portion And Dotted Lines Of Door Sash Film
Peel off the backing paper and attach the door sash film onto the door as shown in the figure.

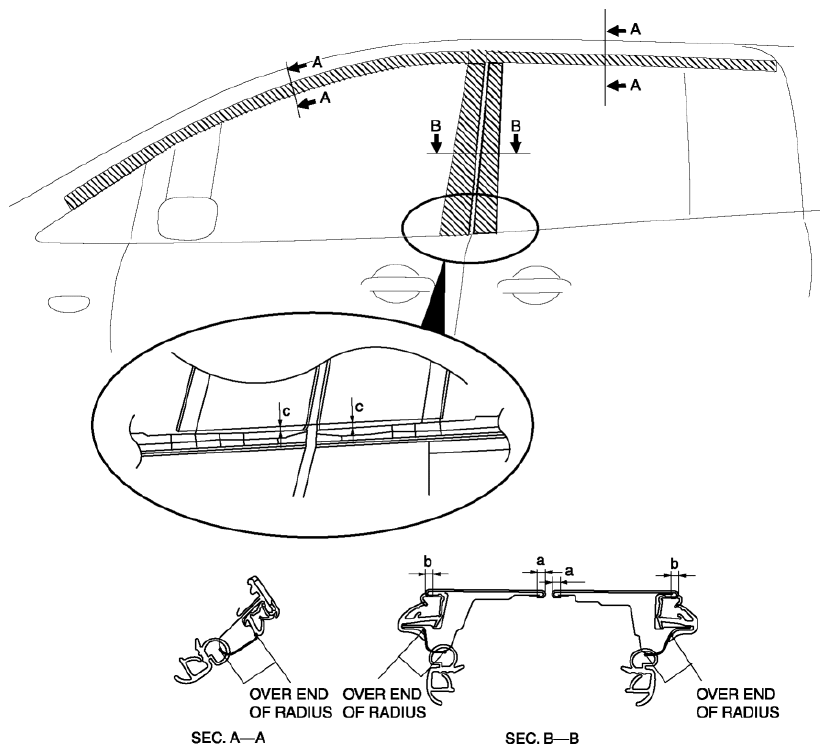

Fig 2: Identifying Door Sash Film Application Dimension

Standard clearance
- a: 3.0-5.0 mm {0.12-0.19 in}
- b: 3.0 mm {0.12 in}
- c: 4.0-6.0 mm {0.16-0.23 in}
Peel off the transparent protective film on the door sash film.
install the following parts:
1. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
2. Sliding door quarter glass (See SLIDING DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
4. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
5. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
6. Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
7. Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
8. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
9. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
