Floor Covering Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable
Remove the following parts.
1. Front seats. See FRONT SEAT REMOVAL/INSTALLATION .
2. Rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
3. Audio amplifier (Vehicles with Bose® system). See AUDIO AMPLIFIER REMOVAL/INSTALLATION .
4. Front scuff plates. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
5. Rear scuff plates. See REAR SCUFF PLATE REMOVAL/INSTALLATION .
6. Front side trims. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
7. Steering shaft cover. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] . See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .
8. Rear side seat back See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
9. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
10. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
11. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM LOCATION INDEX .
12. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
13. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
14. Rear console. See REAR CONSOLE REMOVAL/INSTALLATION .
15. B-pillar lower trims. See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .
16. Fuel-filler lid opener bezel. See FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION .
17. Lower anchor of the front seat belt installation bolts. See FRONT SEAT BELT REMOVAL/INSTALLATION .

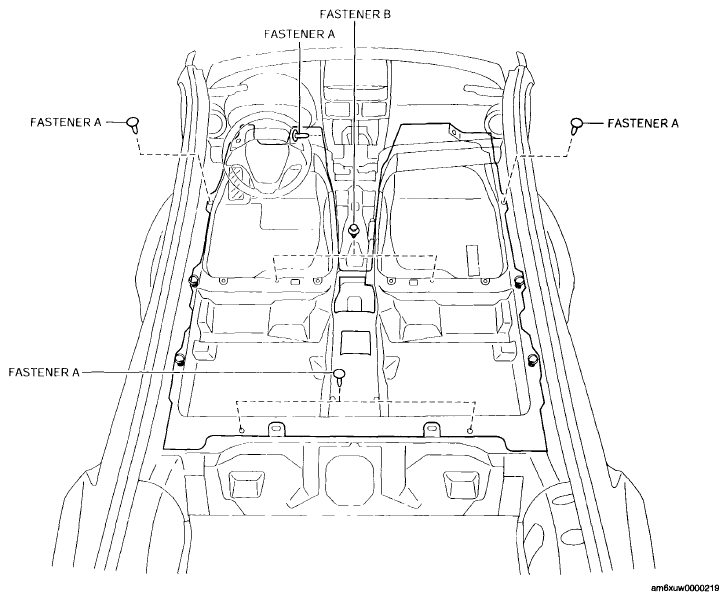

Remove the fasteners A and B.

Fig 1: Identifying Floor Cover Fasteners
Courtesy of MAZDA MOTORS CORP.

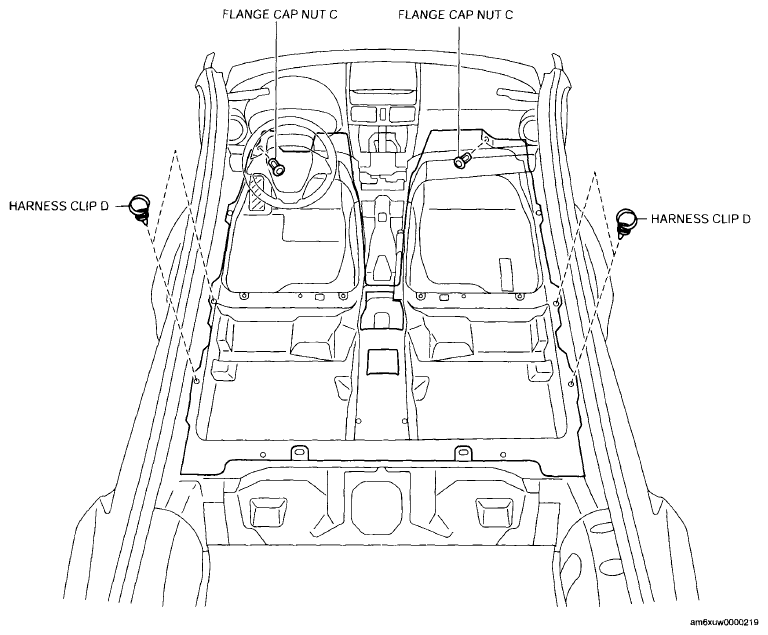

Remove the flange cap nuts C and harness clips D.

Fig 2: Identifying Flange Cap Nuts C And Harness Clips D
Courtesy of MAZDA MOTORS CORP.
Take the floor covering off from the front passenger-side door opening.
Install in the reverse order of removal.
