Front Side Trim Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
- Partially peel back the seaming welt.
- Remove the cap nut.

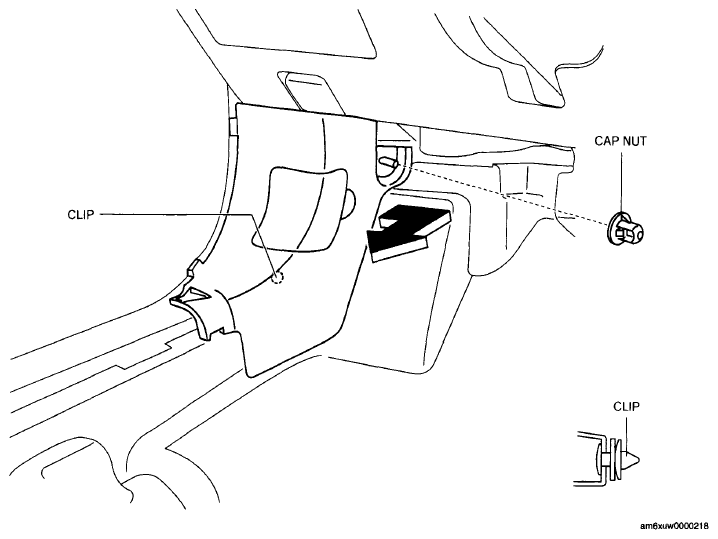

- Pull the front side trim in the direction of the arrow shown in the figure and remove it while detaching clip.
- Install in the reverse order of removal.
