Fuel-Filler Lid Opener Bezel Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screw.

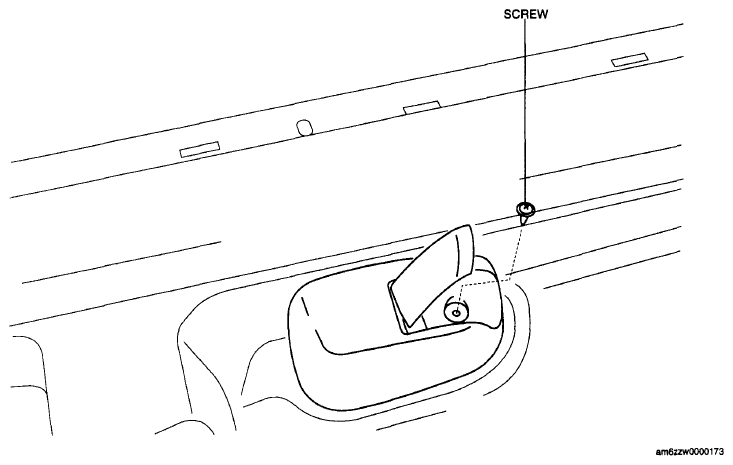

Fig 1: Identifying Fuel-Filler Lid Opener Screw
Courtesy of MAZDA MOTORS CORP.
Move the fuel-filler lid opener bezel in the direction of the arrow shown in the figure.

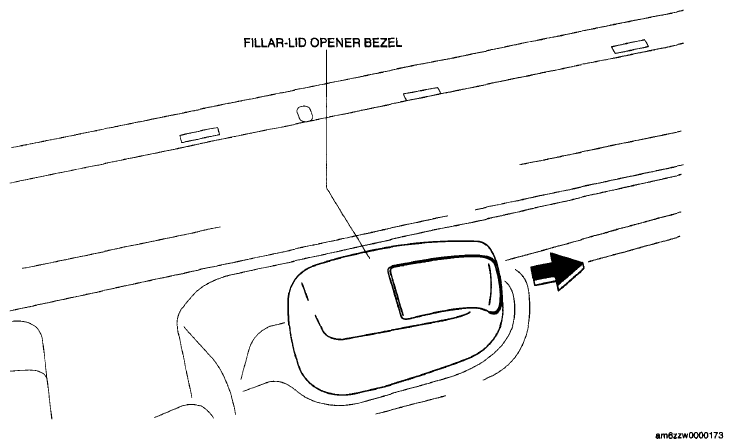

Fig 2: Moving Fuel-Filler Lid Opener Bezel In Direction Of Arrow
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
