Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE TO ENGINE STAND

    Refer to REMOVAL [09/2014 - 10/2015] , or refer to REMOVAL [10/2015 - 11/2017]

  2. REMOVE ENGINE WIRE

    Refer to PROCEDURE - Step 20

  3. REMOVE FUEL PUMP ASSEMBLY (for High Pressure)

    Refer to REMOVAL [09/2014 - 11/2017]

  4. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 1

  5. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 11

  6. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 2WD)

    Refer to PROCEDURE - Step 7 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 13 [10/2015 - 11/2017]

  7. REMOVE OIL FILTER BRACKET (for AWD)

    Refer to PROCEDURE - Step 7

  8. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for AWD)

    Refer to PROCEDURE - Step 9

  9. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 12

  10. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  11. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 9

  12. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 7

  13. REMOVE INJECTOR DRIVER

    Refer to PROCEDURE - Step 8

  14. REMOVE NO. 2 ENGINE COVER

    Refer to PROCEDURE - Step 3

  15. REMOVE WATER INLET

    Refer to PROCEDURE - Step 10

  16. REMOVE CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 4

  17. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  18. REMOVE OIL STRAINER WITH PIPE SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 34

  19. REMOVE OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  20. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 36

  21. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 6

  22. REMOVE NO. 1 OIL PIPE

    Refer to PROCEDURE - Step 18

  23. REMOVE NO. 2 OIL PIPE

    Refer to PROCEDURE - Step 19

  24. REMOVE NO. 2 FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  25. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 31

  26. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30

  27. REMOVE SPARK PLUG TUBE GASKET

    Refer to PROCEDURE - Step 32

  28. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
    1. Remove the bolt and wire harness clamp bracket.
      GTY402891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 25 bolts and 2 nuts.
      GTY409821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

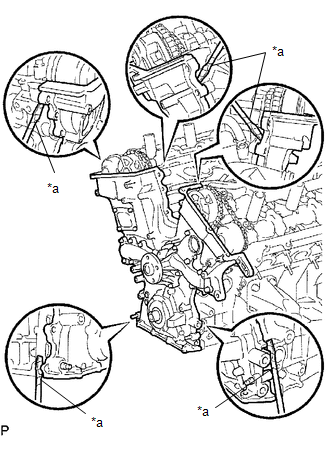

    3. Remove the timing chain cover sub-assembly by prying between the timing chain cover sub-assembly and cylinder head sub-assembly, cylinder head LH or cylinder block sub-assembly with a screwdriver.
      GTY500996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder head sub-assembly, cylinder head LH, cylinder block sub-assembly and timing chain cover sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

    4. Remove the gasket.
      GTY213852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

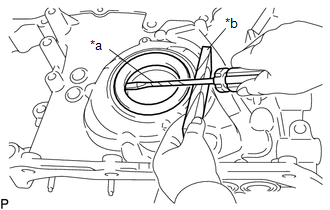

    1. Using a screwdriver and wooden block, pry out the timing gear case or timing chain case oil seal.
      GTY511124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Wooden Block
      NOTE:

      Be careful not to damage the timing chain cover sub-assembly and oil pump rotor set.

      HINT:

      Tape the screwdriver tip before use.
