Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 6

  2. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 2 ENGINE COVER
    1. Disengage the clamp from the No. 2 engine cover.

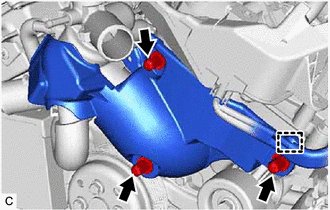

      GTY504492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clips and No. 2 engine cover.
  4. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 7

  5. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 11

  7. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 2WD)

    Refer to PROCEDURE - Step 7 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 13 [10/2015 - 11/2017]

  8. REMOVE OIL FILTER BRACKET (for AWD)

    Refer to PROCEDURE - Step 7

  9. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for AWD)

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Disconnect the 2 clamps.

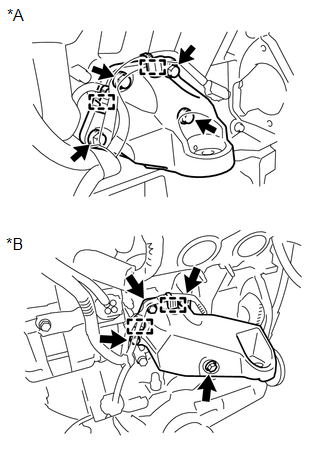

      GTY504527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
    2. Remove the 4 bolts and front No. 1 engine mounting bracket LH from the cylinder block sub-assembly.
  11. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Remove the 4 bolts and front No. 1 engine mounting bracket RH from the cylinder block sub-assembly.

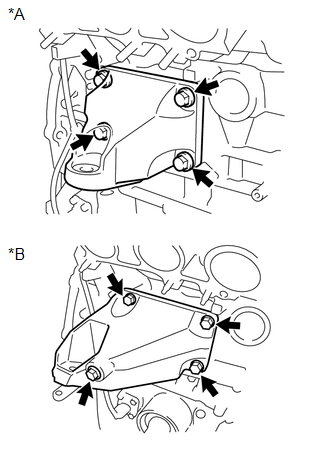

      GTY498146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
  12. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    1. for 2WD:
      1. Remove the 5 bolts and V-ribbed belt tensioner assembly.
        GTY402838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for AWD:
      1. Remove the 4 bolts and V-ribbed belt tensioner assembly.
        GTY105268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 9

  14. REMOVE INJECTOR DRIVER

    Refer to PROCEDURE - Step 8

  15. REMOVE NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017]

  16. REMOVE NO. 3 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  17. REMOVE NO. 2 FUEL TUBE SUB-ASSEMBLY
    1. Disconnect the No. 2 fuel tube sub-assembly from the fuel delivery pipe sub-assembly.

      Refer to PRECAUTION [09/2014 - 11/2017]

    2. Remove the 2 bolts and No. 2 fuel tube sub-assembly.

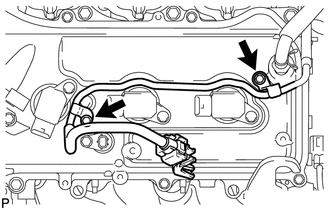

      GTY498035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 2 SURGE TANK STAY
    1. Disconnect the 2 clamps from the No. 2 surge tank stay.
      GTY466856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 2 surge tank stay from the camshaft housing sub-assembly LH.
  19. REMOVE NO. 3 WATER BY-PASS PIPE
    1. Remove the bolt and No. 3 water by-pass pipe from the camshaft housing sub-assembly RH.
      GTY456156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Water By-pass Pipe
      *2 No. 8 Water By-pass Hose
      *3 No. 9 Water By-pass Hose
    2. Slide the clip and disconnect the No. 8 water by-pass hose from the water outlet pipe sub-assembly.
    3. Slide the clip and disconnect the No. 9 water by-pass hose from the rear water by-pass joint.
  20. REMOVE ENGINE WIRE
    1. Remove the engine wire from the engine assembly.
  21. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly RH.

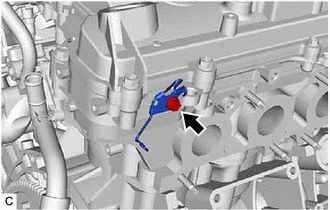

      GTY504509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE V-BANK COVER BRACKET SUB-ASSEMBLY
    1. Remove the bolt and V-bank cover bracket sub-assembly from the cylinder head cover sub-assembly.
      GTY466859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
