Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [09/2014 - 11/2017]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [09/2014 - 10/2015] , or refer to INITIALIZATION [10/2015 - 11/2017]
REMOVE ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 1
REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2
REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 4 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 4 [10/2015 - 11/2017]
REMOVE INLET NO. 1 AIR CLEANER
Refer to PROCEDURE - Step 20 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 20 [10/2015 - 11/2017]

REMOVE NO. 1 ENGINE COVER

Remove the 3 clips and No. 1 engine cover from the timing chain cover sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE INJECTOR DRIVER

Push the lock and move the lock lever of each connector (with lock) as shown in the illustration and disconnect the 3 connectors (with lock) from the injector driver.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock Lever
*b	Lock
*c	Connector (with Lock)

Disconnect the injector driver connector.

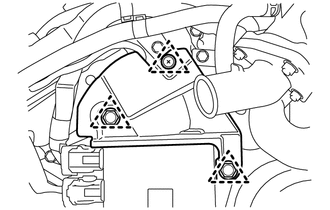

Remove the bolt, 2 nuts and injector driver from the timing chain cover sub-assembly.

	Bolt
	Nut

NOTE:

Be careful not to drop or strike the injector driver.
