Removal [09/2014 - 11/2017]: Procedure
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE V-RIBBED BELT

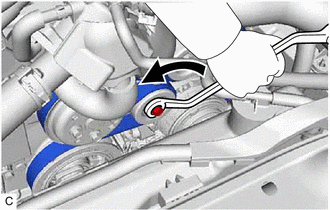

- Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise and remove the V-ribbed belt from the V-ribbed belt tensioner assembly.

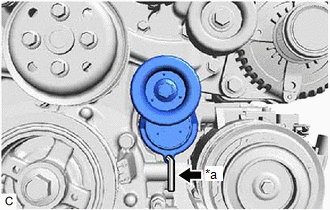

- Turn the V-ribbed belt tensioner assembly counterclockwise to align the holes, and then insert a 5 mm bi-hexagon wrench to secure the V-ribbed belt tensioner assembly.
*a 5 mm Bi-hexagon Wrench
- Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise and remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
