Removal [10/2015 - 11/2017]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  2. REMOVE V-RIBBED BELT (for 8AR-FTS)

    Refer to REMOVAL [10/2015 - ]

  3. REMOVE V-RIBBED BELT (for 2GR-FSE)

    Refer to REMOVAL [09/2014 - 11/2017]

  4. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for 8AR-FTS)

    Refer to PROCEDURE - Step 12

  5. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for 2GR-FSE)

    Refer to PROCEDURE - Step 11

  6. REMOVE REAR ENGINE UNDER COVER LH (for 8AR-FTS)

    Refer to PROCEDURE - Step 15

  7. REMOVE REAR ENGINE UNDER COVER LH (for 2GR-FSE)

    Refer to PROCEDURE - Step 12

  8. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE (for 8AR-FTS)
    1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor and magnetic clutch.

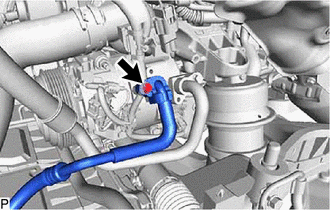

      GTY669553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  9. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE (for 2GR-FSE)
    1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor and magnetic clutch.
      GTY461609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  10. DISCONNECT SUCTION HOSE (for 8AR-FTS)
    1. Remove the bolt and disconnect the suction hose from the compressor and magnetic clutch.

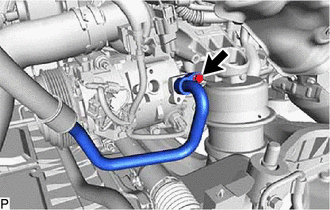

      GTY669552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  11. DISCONNECT SUCTION HOSE (for 2GR-FSE)
    1. Remove the bolt and disconnect the suction hose from the compressor and magnetic clutch.
      GTY461610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  12. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 8AR-FTS)
    1. Disconnect the 2 connectors.

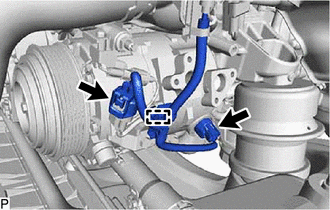

      GTY685087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 2 bolts and 2 nuts.

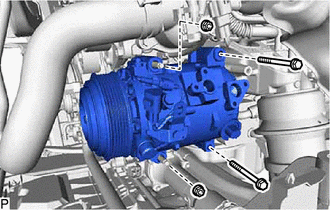

      GTY669551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor and magnetic clutch.

      HINT:

      Remove the compressor and magnetic clutch from the vehicle with the stud bolts remaining in the compressor and magnetic clutch.

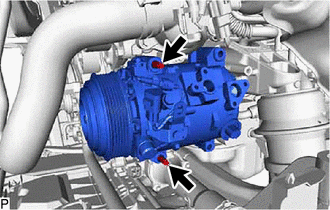

      GTY669550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 2GR-FSE)
    1. Disconnect the 2 connectors.
      GTY464988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 3 bolts and nut.
      GTY461608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using an E8 "TORX" socket wrench, remove the stud bolt and compressor and magnetic clutch.

      HINT:

      Remove the compressor and magnetic clutch from the vehicle with the stud bolt remaining in the compressor and magnetic clutch.

      GTY469715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
