Disassembly [12/2021 - ]: Procedure

  1. REMOVE BACK DOOR NAME PLATE
    Refer to PROCEDURE - Step 1
  2. REMOVE REAR BODY NO. 3 NAME PLATE
    Refer to PROCEDURE - Step 2

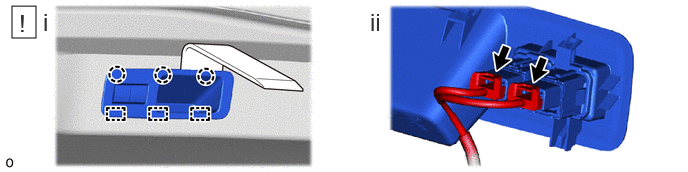

  3. REMOVE DOOR PULL HANDLE
    1. GTY1055638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the claws and guides to remove the door pull handle.
      2. Disconnect the 2 connectors.
  4. REMOVE BACK DOOR TRIM BASE

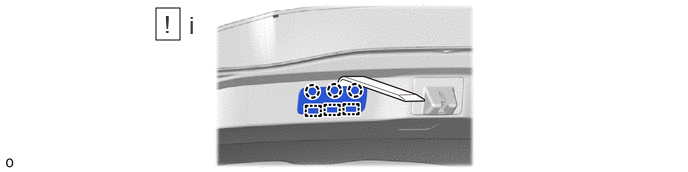

    1. GTY1056255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the claws and guides to remove the back door trim base.

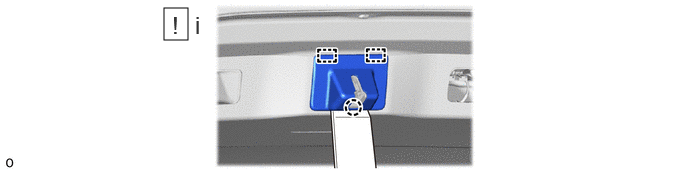

  5. REMOVE BACK DOOR LOCK COVER
    1. GTY1055731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the claw and guides to remove the back door lock cover.
  6. REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)

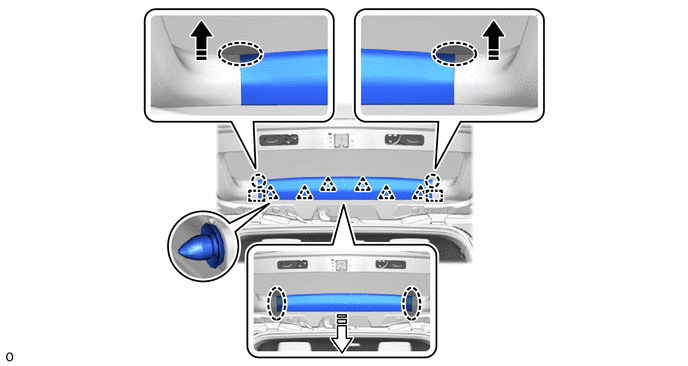

    1. GTY1056190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -

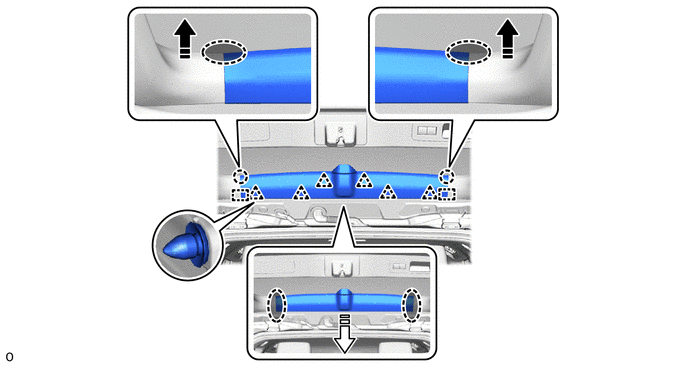

  7. REMOVE BACK DOOR CENTER GARNISH WITH NO. 2 BACK DOOR SERVICE HOLE COVER (w/ Digital Inner Mirror)
    1. GTY1059246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -

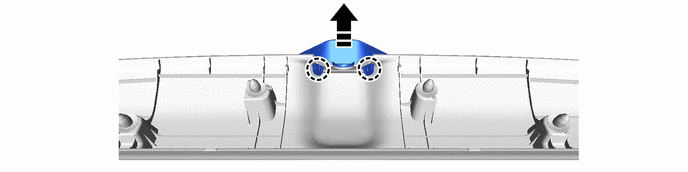

  8. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER (w/ Digital Inner Mirror)
    1. GTY1081701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

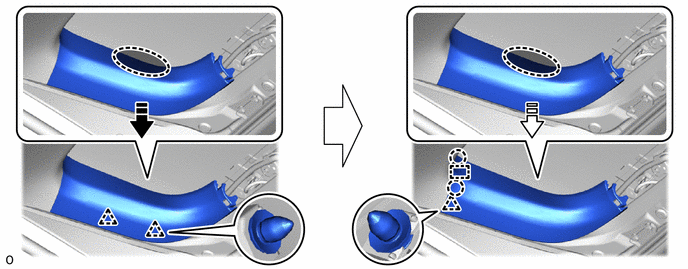

  9. REMOVE BACK DOOR SIDE GARNISH LH
    1. GTY1055655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
  10. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  11. REMOVE BACK DOOR SERVICE HOLE COVER

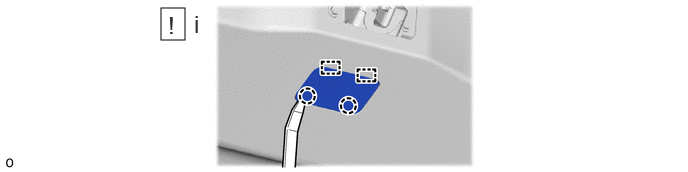

    1. GTY1056963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the claws and guides to remove the back door service hole cover.
  12. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

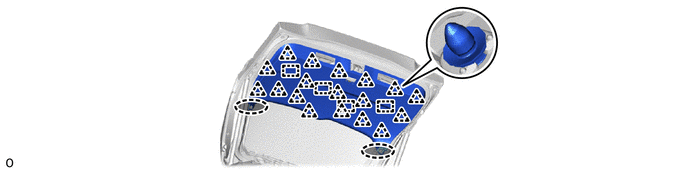

    1. GTY1056205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR NO. 3 SPEAKER ASSEMBLY WITH BRACKET (w/ Back Door Speaker)
    Refer to PROCEDURE - Step 8
  14. REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 10

  15. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 1

  16. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 9

  17. REMOVE REAR WIPER MOTOR GROMMET
    Refer to PROCEDURE - Step 10
  18. REMOVE HOLE PLUG

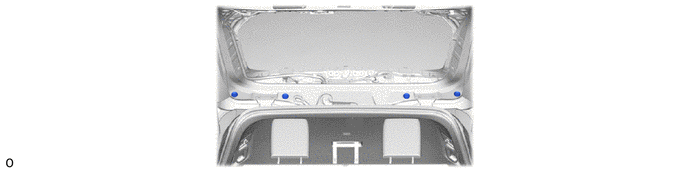

    1. GTY1056204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    See step  10

  20. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  21. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 3
  22. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  23. REMOVE REAR SPOILER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 6
  24. REMOVE LOWER BACK DOOR OUTSIDE GARNISH
    Refer to PROCEDURE - Step 14

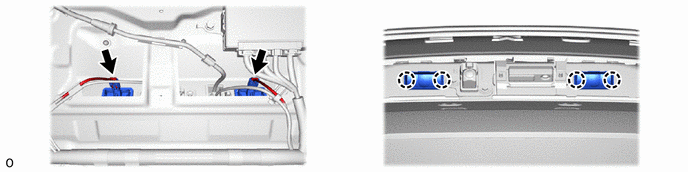

  25. REMOVE LICENSE PLATE LIGHT SUB-ASSEMBLY
    1. GTY1056202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR TELEVISION CAMERA ASSEMBLY
    Refer to PROCEDURE - Step 3
  27. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    Refer to PROCEDURE - Step 12
  28. REMOVE REAR LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 2
  29. REMOVE LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    Refer to PROCEDURE - Step 15
  30. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  2

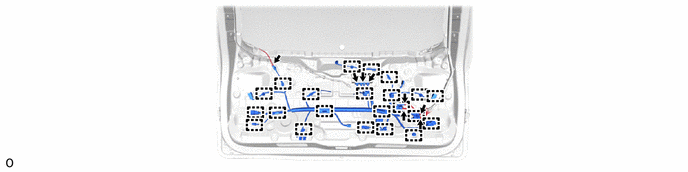

  31. REMOVE NO. 2 BACK DOOR WIRE
    1. GTY1056176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE POWER BACK DOOR DRIVE UNIT ASSEMBLY LH
    See step  10
  33. REMOVE POWER BACK DOOR DRIVE UNIT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  34. REMOVE BACK DOOR UPPER DAMPER STAY BRACKET LH

    See step  11

  35. REMOVE BACK DOOR UPPER DAMPER STAY BRACKET RH
    1. Use the same procedure as for the LH side.
  36. REMOVE BACK DOOR SIDE MALE STOPPER LH
    1. GTY1056898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE BACK DOOR SIDE MALE STOPPER RH (w/ Digital Inner Mirror)
    1. Use the same procedure as for the LH side.
  38. REMOVE BACK DOOR FINISH PANEL RETAINER

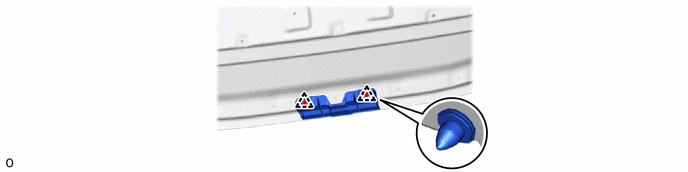

    1. GTY1056174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE INNER MIRROR CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 2

  40. REMOVE REAR WASHER NOZZLE
    Refer to PROCEDURE - Step 2

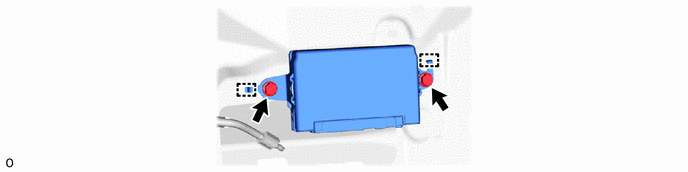

  41. REMOVE MULTIPLEX NETWORK DOOR COMPUTER
    1. GTY1056171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE WASHER HOSE ASSEMBLY

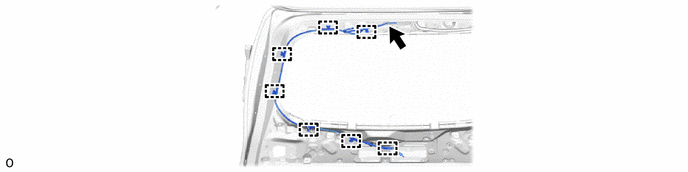

    1. GTY1056897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

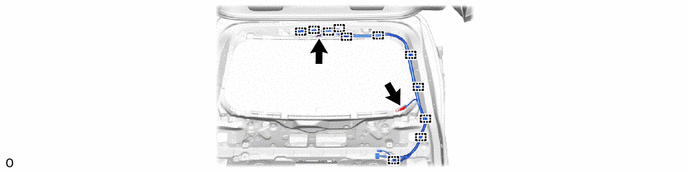

  43. REMOVE NO. 1 BACK DOOR WIRE
    1. GTY1056169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE DOOR DUST PROOF SEAL

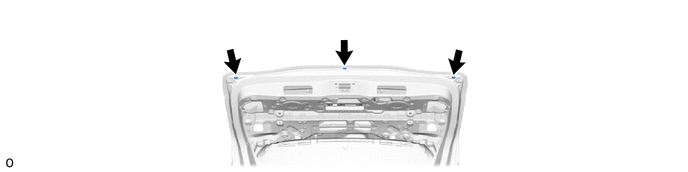

    1. GTY1056900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

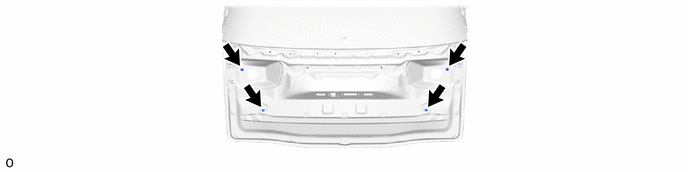

  45. REMOVE HOLE PLUG
    1. GTY1056181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
