Removal [12/2021 - ]: Procedure

  1. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

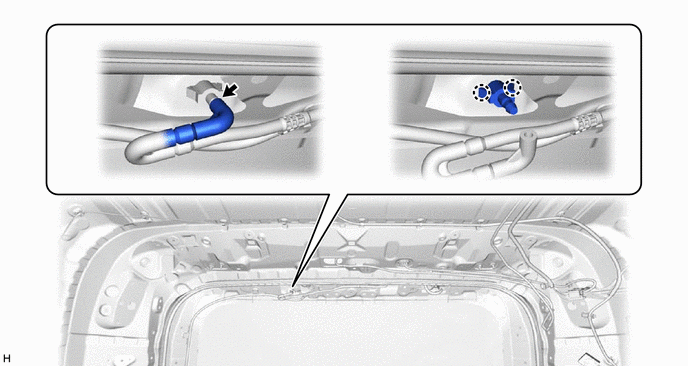

  2. REMOVE REAR WASHER NOZZLE
    1. GTY1070607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
