Removal [12/2021 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)

    Refer to PROCEDURE - Step 6

  2. REMOVE BACK DOOR CENTER GARNISH WITH NO. 2 BACK DOOR SERVICE HOLE COVER (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 7

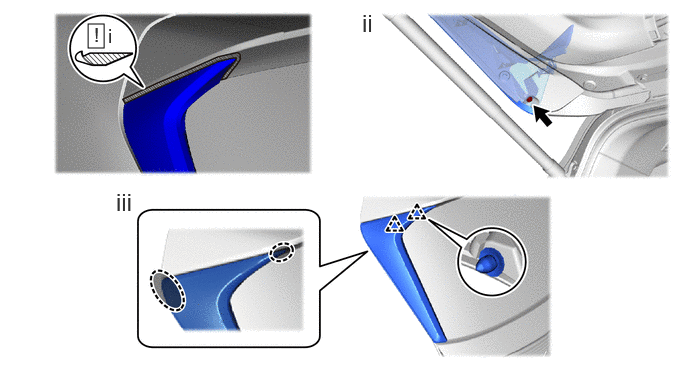

  3. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH
    1. GTY1057257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here - -
      1. Put protective tape around the rear spoiler side protector sub-assembly LH.
      2. Open the back door and remove the screw.
      3. Place your hand at the positions shown in the illustration and detach the clip as shown in the illustration.

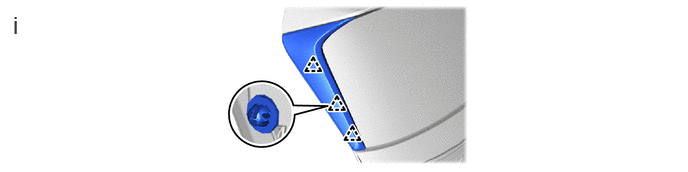

    2. GTY1058989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the clip and remove the rear spoiler side protector sub-assembly LH.
  4. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH
    1. Use the same procedure described for the LH side.

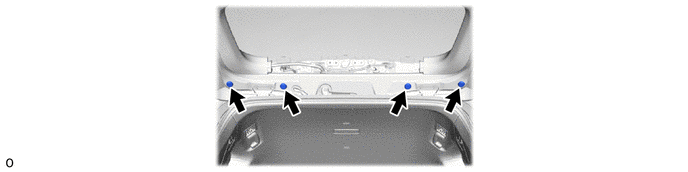

  5. REMOVE HOLE PLUG
    1. GTY1056784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

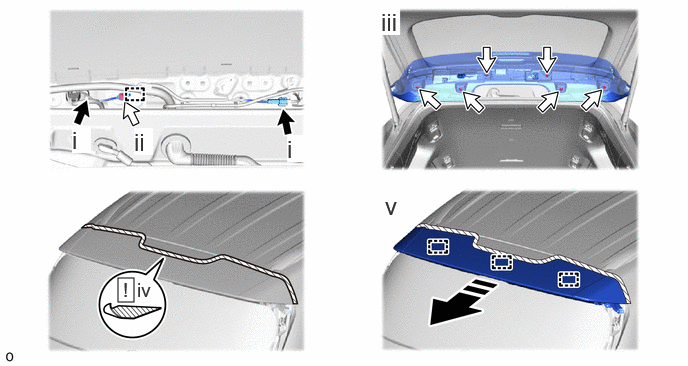

  6. REMOVE REAR SPOILER SUB-ASSEMBLY
    1. GTY1056200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Connector
      Bolt - -
      1. Disconnect the 2 connectors.
      2. Remove the bolt and detach the guide.
      3. Remove the 6 bolts.
      4. Close the back door and put protective tape around the rear spoiler sub-assembly.
      5. Detach the pin and remove the rear spoiler sub-assembly.
