Removal [12/2021 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE REAR LIGHT ASSEMBLY

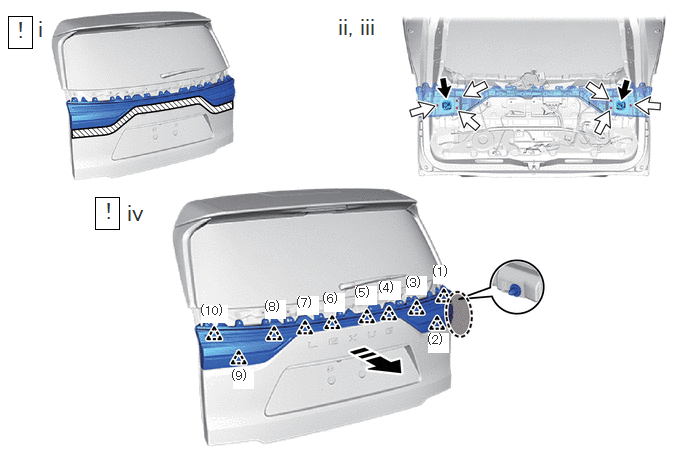

    1. GTY1071639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      Connector Nut
      1. Apply protective tape around the rear light assembly LH.
      2. Disconnect the 2 connectors.
      3. Remove the 6 nuts.
      4. Detach the clip and pull out the rear light assembly LH as shown in the illustration.
  3. REMOVE REAR LIGHT GASKET (for LH Side)

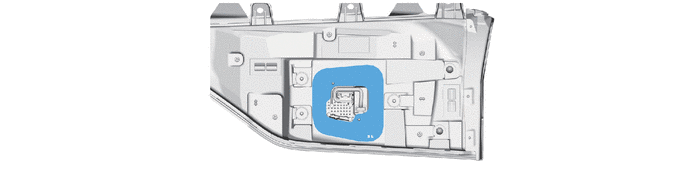

    1. GTY1072127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR LIGHT GASKET (for RH Side)
    1. Use the same procedure described for LH side.
