Removal [12/2021 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)

    Refer to PROCEDURE - Step 6

  2. REMOVE BACK DOOR CENTER GARNISH WITH NO. 2 BACK DOOR SERVICE HOLE COVER (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 7

  3. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 9

  4. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure described for the LH side.
  5. REMOVE DOOR PULL HANDLE
    Refer to PROCEDURE - Step 3
  6. REMOVE BACK DOOR LOCK COVER
    Refer to PROCEDURE - Step 5
  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 12

  8. REMOVE REAR NO. 3 SPEAKER ASSEMBLY WITH BRACKET
    NOTE:

    Do not touch the cone of the rear No. 3 speaker assembly.

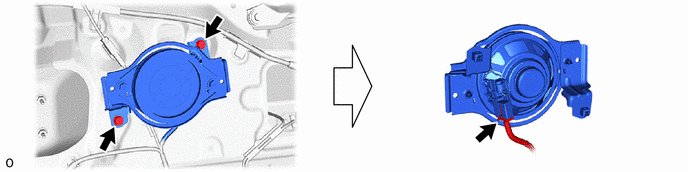

    1. GTY1071185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the seme procedure for the opposite side.

  9. REMOVE REAR NO. 3 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone of the rear No. 3 speaker assembly.
    1. GTY1071175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the seme procedure for the opposite side.
