Removal [12/2021 - ]: Procedure

  1. REMOVE DOOR PULL HANDLE
    Refer to PROCEDURE - Step 3
  2. REMOVE BACK DOOR TRIM BASE
    Refer to PROCEDURE - Step 4
  3. REMOVE BACK DOOR LOCK COVER
    Refer to PROCEDURE - Step 5
  4. REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)

    Refer to PROCEDURE - Step 6

  5. REMOVE BACK DOOR CENTER GARNISH WITH NO. 2 BACK DOOR (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 7

  6. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 8

  7. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 9

  8. REMOVE BACK DOOR SIDE GARNISH RH
  9. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 12

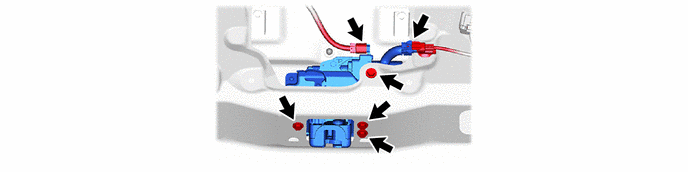

  10. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    1. GTY1056253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
