Removal [12/2021 - ]: Procedure

  1. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

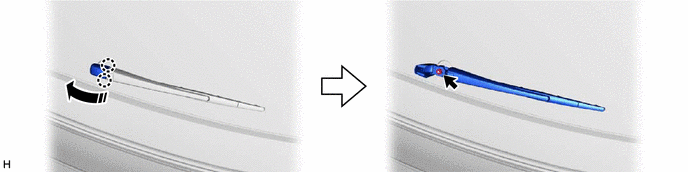

    1. GTY1071310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disengage in this Direction - -
  2. REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)

    Refer to PROCEDURE - Step 6

  3. REMOVE BACK DOOR CENTER GARNISH WITH NO. 2 BACK DOOR SERVICE HOLE COVER (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 7

  4. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 9

  5. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  6. REMOVE BACK DOOR TRIM BASE
    Refer to PROCEDURE - Step 4
  7. REMOVE DOOR PULL HANDLE
    Refer to PROCEDURE - Step 3
  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 12

  9. REMOVE REAR WIPER MOTOR ASSEMBLY

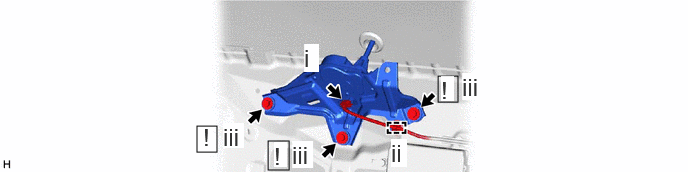

    1. GTY1071239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Detach the clamp.
      3. Loosen the 3 bolts and rear wiper motor assembly.
        NOTE:

        Be careful not to scratch the back door glass.

  10. REMOVE REAR WIPER MOTOR GROMMET

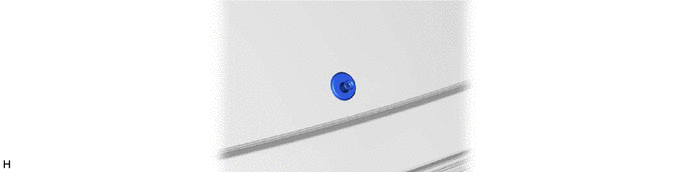

    1. GTY1070582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
