Removal [12/2021 - ]: Procedure

  1. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE LOWER BACK DOOR OUTSIDE GARNISH
    Refer to PROCEDURE - Step 14

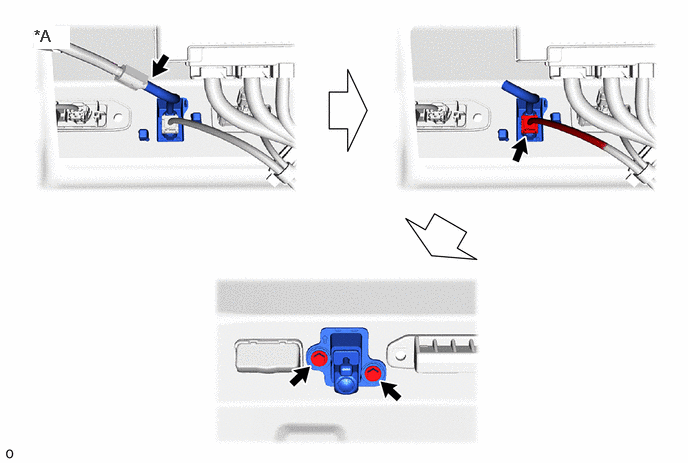

  3. REMOVE REAR TELEVISION CAMERA ASSEMBLY
    1. GTY1082023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Washer - -
  4. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY (w/ Washer)
    Refer to PROCEDURE - Step 2
