Removal [10/2018 - 07/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE ASSEMBLY TO ENGINE STAND

    Refer to REMOVAL [10/2018 - 07/2022]

  2. REMOVE ENGINE HANGERS

    See step  60

  3. REMOVE FUEL HOSE BRACKET

    Refer to PROCEDURE - Step 3

  4. REMOVE WATER SEAL PLATE

    Refer to PROCEDURE - Step 42

  5. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 9

  6. REMOVE MANIFOLD STAY

    Refer to PROCEDURE - Step 10

  7. REMOVE EXHAUST MANIFOLD (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 11

  8. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 5

  9. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 6

  10. REMOVE EGR COOLER ASSEMBLY

    Refer to PROCEDURE - Step 2

  11. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  12. REMOVE EGR VALVE ASSEMBLY

    Refer to PROCEDURE - Step 4

  13. REMOVE NO. 3 WATER BY-PASS PIPE

    Refer to PROCEDURE - Step 12

  14. REMOVE INTAKE MANIFOLD STAY

    Refer to PROCEDURE - Step 11

  15. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 12

  16. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

    Refer to PROCEDURE - Step 13

  17. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  18. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  19. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)

    Refer to PROCEDURE - Step 8

  20. REMOVE WATER BY-PASS HOSE ASSEMBLY

    Refer to PROCEDURE - Step 19

  21. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  22. REMOVE FUEL DELIVERY SPACER

    Refer to PROCEDURE - Step 4

  23. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 5

  24. REMOVE NO. 5 ENGINE WIRE

    Refer to PROCEDURE - Step 6

  25. REMOVE PORT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 7

  26. REMOVE FUEL DELIVERY PIPE

    Refer to PROCEDURE - Step 3

  27. REMOVE DIRECT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 4

  28. REMOVE FUEL INJECTOR SEAL

    Refer to PROCEDURE - Step 5

  29. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  30. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 31

  31. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

    Refer to PROCEDURE - Step 2

  32. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

    Refer to PROCEDURE - Step 2

  33. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

    Refer to PROCEDURE - Step 3

  34. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to PROCEDURE - Step 1

  35. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

    Refer to PROCEDURE - Step 2

  36. REMOVE CAM TIMING CONTROL MOTOR O-RING

    Refer to PROCEDURE - Step 3

  37. REMOVE CRANKSHAFT PULLEY ASSEMBLY

    Refer to PROCEDURE - Step 14

  38. REMOVE WATER OUTLET

    Refer to PROCEDURE - Step 15

  39. REMOVE OUTLET WATER BY-PASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  40. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  41. REMOVE SPARK PLUG TUBE GASKET

    Refer to PROCEDURE - Step 18

  42. REMOVE ENGINE MOUNTING BRACKET RH

    Refer to PROCEDURE - Step 19

  43. REMOVE NO. 2 TIMING CHAIN COVER ASSEMBLY

    Refer to PROCEDURE - Step 21

  44. REMOVE TIMING CHAIN COVER OIL SEAL

    Refer to PROCEDURE - Step 22

  45. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

    Refer to PROCEDURE - Step 23

  46. REMOVE OIL PUMP DRIVE CHAIN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  47. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY

    Refer to PROCEDURE - Step 25

  48. REMOVE CHAIN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26

  49. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 27

  50. REMOVE CHAIN TENSIONER SLIPPER

    Refer to PROCEDURE - Step 28

  51. REMOVE NO. 1 CHAIN VIBRATION DAMPER

    Refer to PROCEDURE - Step 29

  52. REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

    Refer to PROCEDURE - Step 30

  53. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to PROCEDURE - Step 31

  54. REMOVE FUEL PUMP LIFTER GUIDE

    Refer to PROCEDURE - Step 34

  55. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  56. REMOVE CAMSHAFT BEARING CAP

    Refer to PROCEDURE - Step 36

  57. REMOVE INTAKE CAMSHAFT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  58. REMOVE EXHAUST CAMSHAFT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38

  59. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39

  60. REMOVE VALVE LASH ADJUSTER ASSEMBLY

    Refer to PROCEDURE - Step 40

  61. REMOVE CYLINDER HEAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 43

  62. REMOVE CYLINDER HEAD GASKET

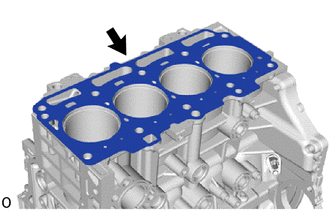

    GTY801572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the cylinder head gasket from the cylinder block sub-assembly.
  63. INSPECT CYLINDER HEAD SET BOLT

    Refer to PROCEDURE - Step 19

  64. INSPECT CYLINDER HEAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1
