Removal [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 12 Refer to PROCEDURE - Step 11

REMOVE IGNITION COIL ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

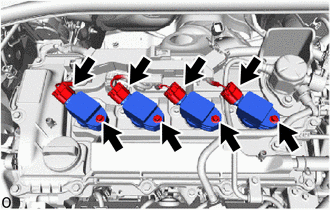

Disconnect the 4 ignition coil assembly connectors.

Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
NOTE:
If an ignition coil assembly has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.

REMOVE SPARK PLUG
Refer to PROCEDURE - Step 3
