Removal [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

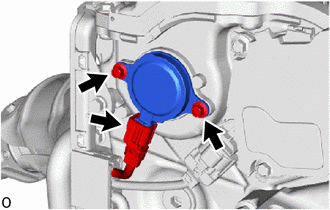

Disconnect the cam timing oil control solenoid assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE O-RING

HINT:

Perform this procedure only when replacement of the O-ring is necessary.

Remove the O-ring from the cam timing oil control solenoid assembly.

NOTE:

When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
