Removal [08/2016 - 12/2017]: Procedure
- PRECAUTION
Refer to PRECAUTION [10/2015 - 03/2018]
NOTE:After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [08/2016 - 12/2017]
- REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
Refer to REMOVAL [08/2016 - 08/2019]

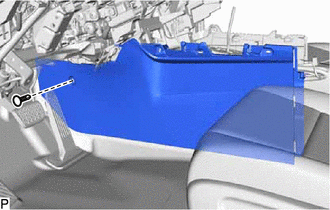

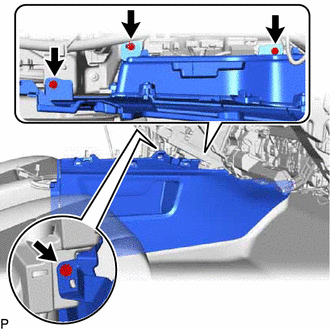

- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [10/2015 - 12/2017]

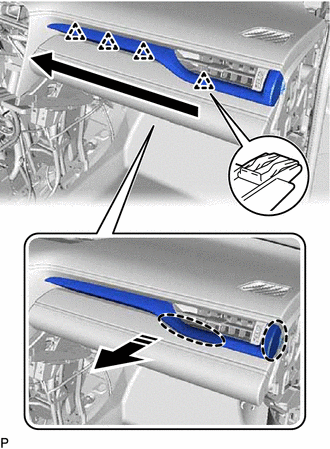

- REMOVE INSTRUMENT PANEL GARNISH LH
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 9
- REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 3

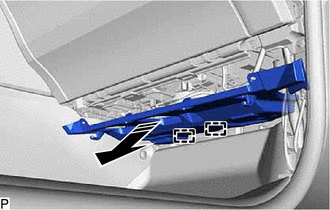

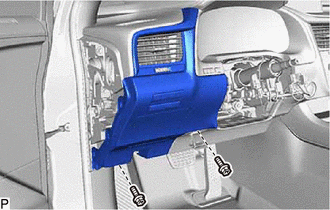

- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

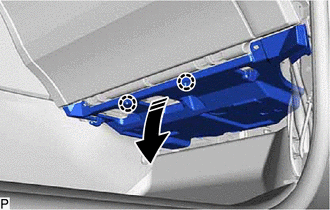

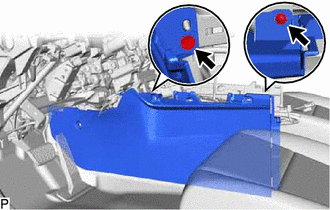

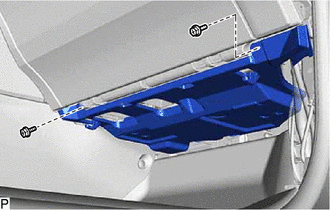

- Remove the 2 screws <C>.
- Disengage the 3 claws as shown in the illustration.

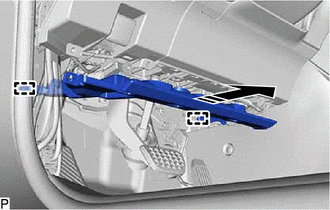

Remove in this Direction - Disengage the 2 guides as shown in the illustration.

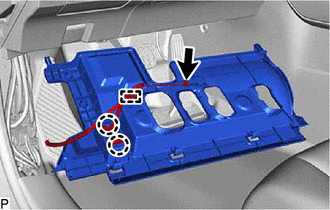

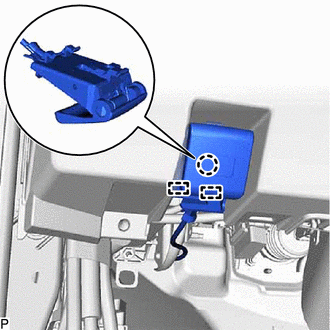

Remove in this Direction - Disengage the 2 claws to disconnect the DLC3 connector.
- Disconnect the connector.
- Disengage the clamp to remove the No. 1 instrument panel under cover sub-assembly.

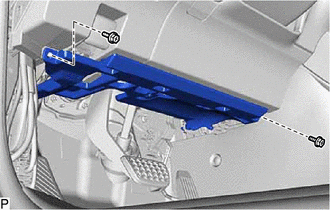

- Remove the 2 screws <C>.

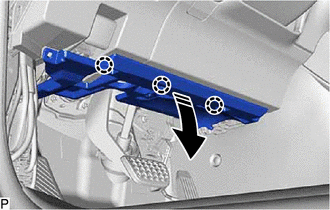

- DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

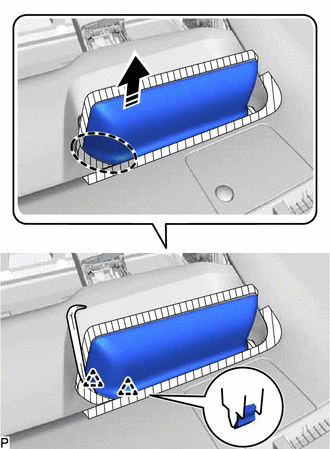

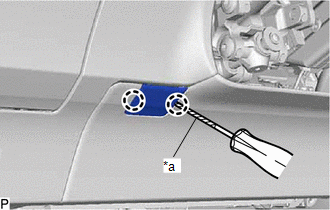

- Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to disconnect the instrument panel hole cover.
*a Protective Tape - Remove the 2 screws <C>.

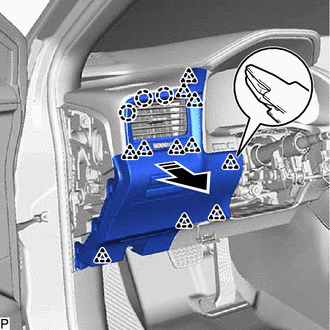

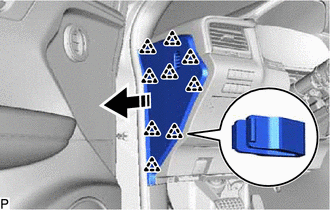

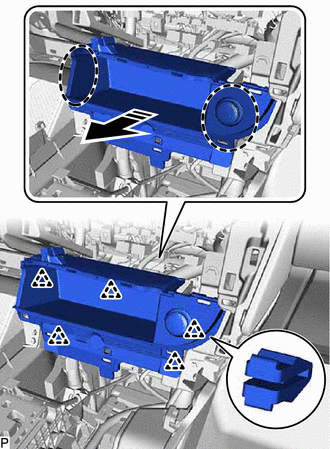

- Disengage the 11 clips and 3 claws as shown in the illustration.

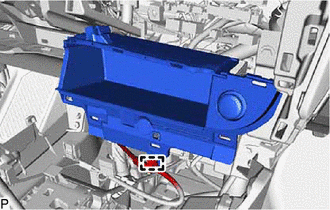

Remove in this Direction - Disconnect each connector to remove the lower instrument panel finish panel sub-assembly.
- Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to disconnect the instrument panel hole cover.
- REMOVE LOWER INSTRUMENT FINISH PANEL SUB
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 15

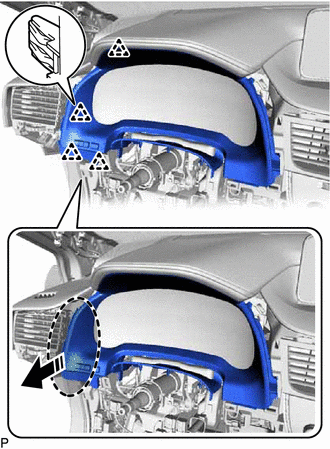

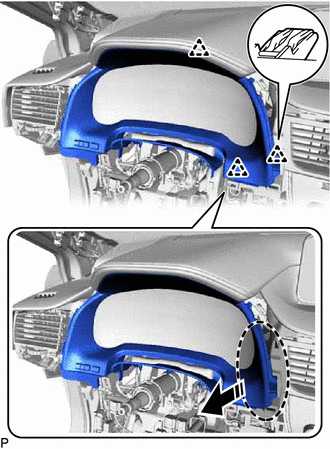

- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
- REMOVE COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 17
- REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR
Refer to PROCEDURE - Step 9
- REMOVE RADIO RECEIVER ASSEMBLY WITH REGISTER
Refer to PROCEDURE - Step 9
- REMOVE CONSOLE BOX ASSEMBLY

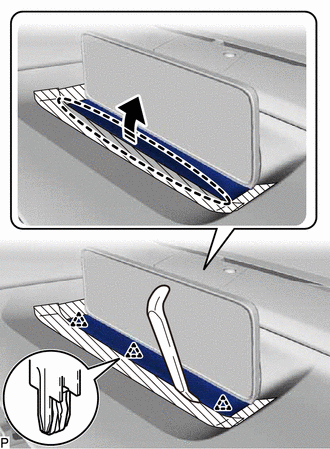

- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)

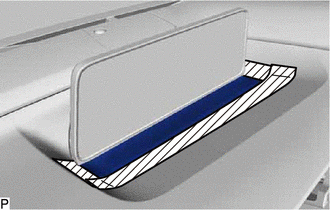

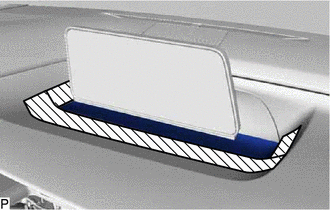

- Apply protective tape to the areas shown in the illustration.

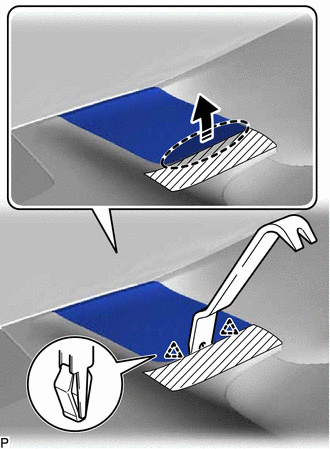

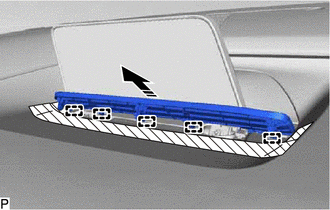

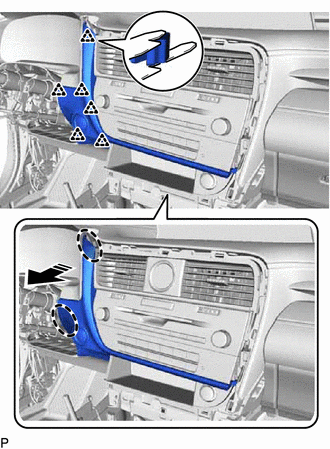

Protective Tape - Using a moulding remover A, disengage the 3 clips as shown in the illustration.
Insert Moulding Remover A Here Remove in this Direction - Disengage the 5 guides to remove the center instrument cluster finish panel sub-assembly as shown in the illustration.
Remove in this Direction

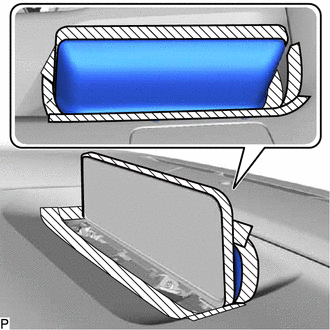

- Apply protective tape to the areas shown in the illustration.

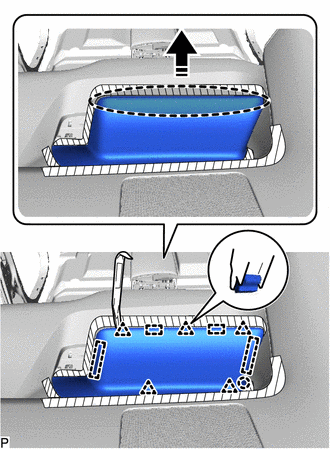

- REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)
- Apply protective tape to the areas shown in the illustration.
Protective Tape - Using a moulding remover A, disengage the 2 clips as shown in the illustration.
Insert Moulding Remover A Here Remove in this Direction - Using a moulding remover A, disengage the 5 claws, 4 clips and 7 guides to remove the instrument panel finish panel sub-assembly as shown in the illustration.
Insert Moulding Remover A Here Remove in this Direction
- Apply protective tape to the areas shown in the illustration.

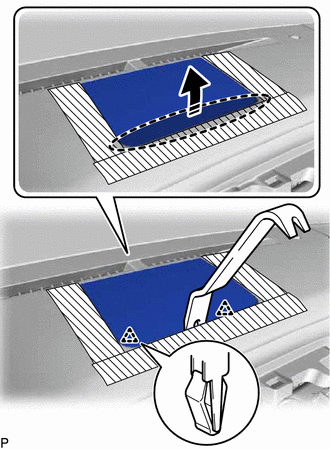

- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)
- Apply protective tape to the areas shown in the illustration.

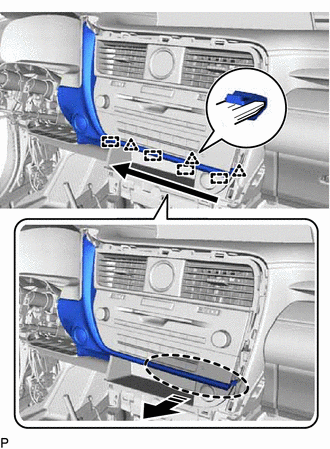

Protective Tape - Using a moulding remover A, disengage the 3 clips, 2 claws and guide as shown in the illustration.

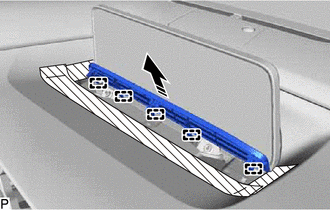

Insert Moulding Remover A Here Remove in this Direction - Disengage the 5 guides to remove the center instrument cluster finish panel sub-assembly as shown in the illustration.
Remove in this Direction
- Apply protective tape to the areas shown in the illustration.
- REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)
- Apply protective tape to the areas shown in the illustration.
Protective Tape - Using a moulding remover B, disengage the 2 clips as shown in the illustration.
Insert Moulding Remover B Here Remove in this Direction - Using a moulding remover A, disengage the claw, 5 clips and 4 guides to remove the instrument panel finish panel sub-assembly as shown in the illustration.
Insert Moulding Remover A Here Remove in this Direction

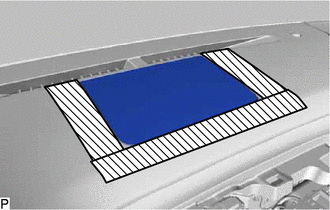

- Apply protective tape to the areas shown in the illustration.

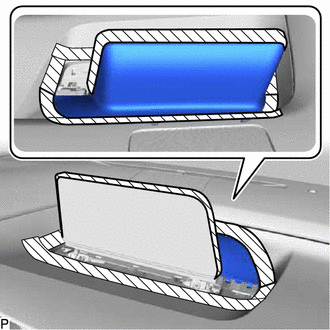

- REMOVE ACCESSORY METER ASSEMBLY (for 12.3 Inch Display)
Refer to PROCEDURE - Step 6
- REMOVE MULTI-DISPLAY ASSEMBLY (for 8 Inch Display)
Refer to PROCEDURE - Step 5

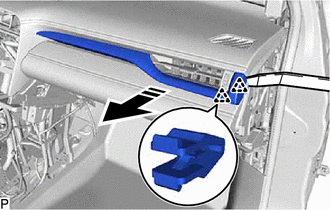

- REMOVE INSTRUMENT PANEL GARNISH RH
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure as for the LH side.

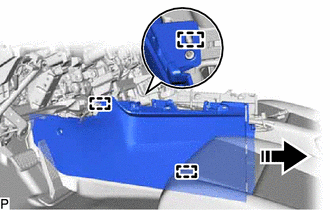

- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
- Open the glove compartment door assembly.

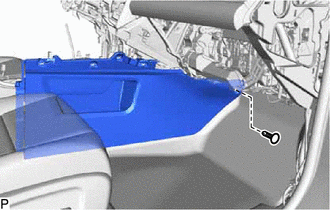

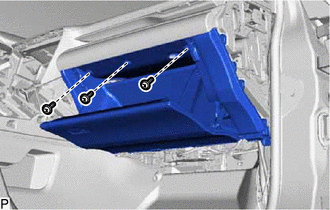

- Remove the 3 screws <D>.
- Close the glove compartment door assembly.

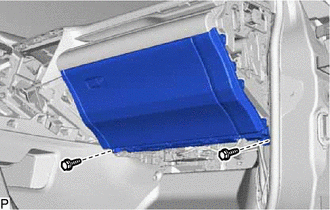

- Remove the 2 bolts <B>.

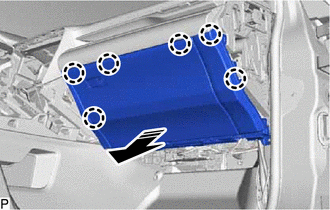

- Disengage the 6 claws as shown in the illustration.
Remove in this Direction - Disconnect the connector.
- Disengage the clamp to remove the glove compartment door assembly.
- REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

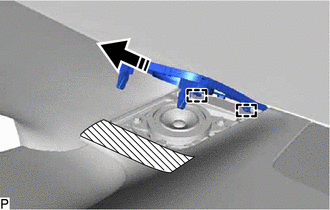

- Apply protective tape to the area shown in the illustration.

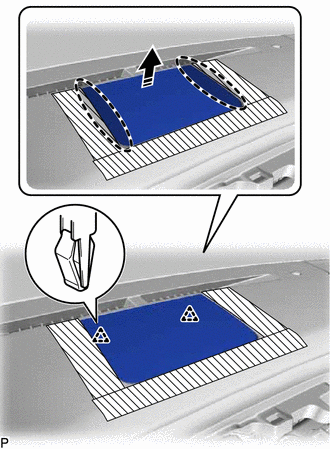

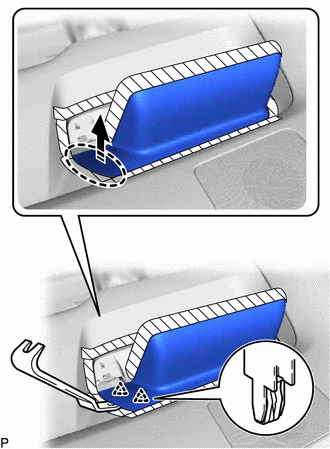

Protective Tape - Using a moulding remover B, disengage the 2 clips as shown in the illustration.
Insert Moulding Remover B Here Remove in this Direction - Disengage the 2 guides to remove the No. 1 instrument panel speaker panel sub-assembly as shown in the illustration.
Remove in this Direction
- Apply protective tape to the area shown in the illustration.
- REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 2
- REMOVE FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 10
- REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY
- Apply protective tape to the areas shown in the illustration.

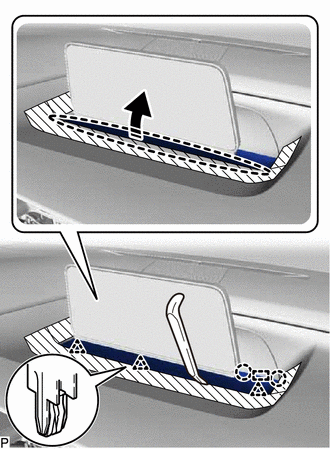

Protective Tape - Using a moulding remover B, disengage the 2 clips as shown in the illustration.

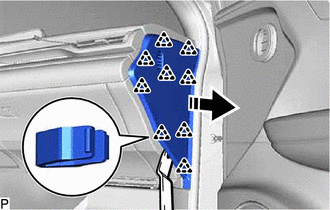

Insert Moulding Remover B Here Remove in this Direction - Disengage the 2 clips to remove the No. 1 speaker opening cover assembly as shown in the illustration.
Place Hand Here Remove in this Direction

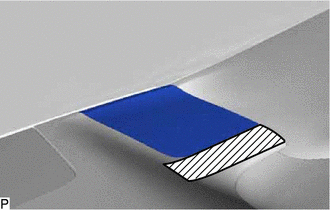

- Apply protective tape to the areas shown in the illustration.
- REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

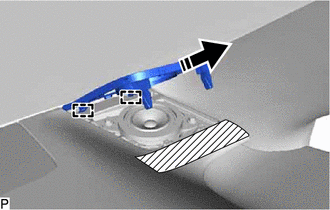

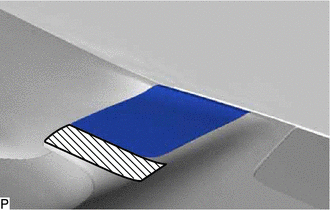

- Apply protective tape to the area shown in the illustration.

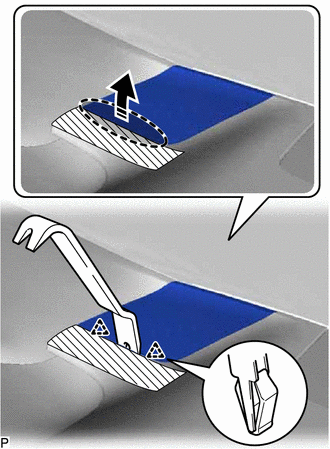

Protective Tape - Using a moulding remover B, disengage the 2 clips as shown in the illustration.
Insert Moulding Remover B Here Remove in this Direction - Disengage the 2 guides to remove the No. 2 instrument panel speaker panel sub-assembly as shown in the illustration.
Remove in this Direction
- Apply protective tape to the area shown in the illustration.
- REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.

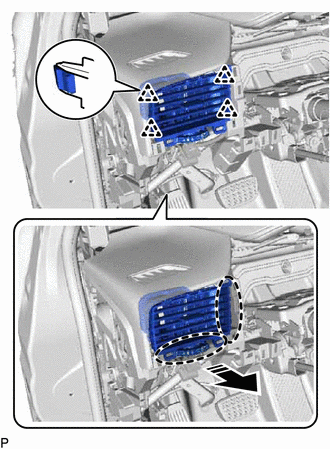

- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE NO. 2 INSTRUMENT CLUSTER MOULDING

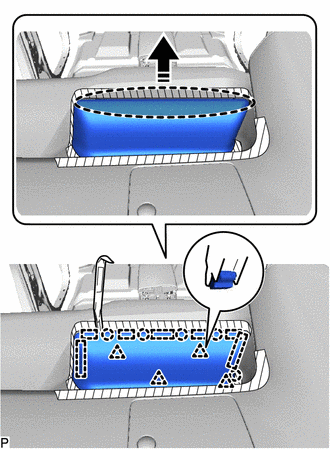

- Using a moulding remover A, disengage the 2 clips as shown in the illustration.

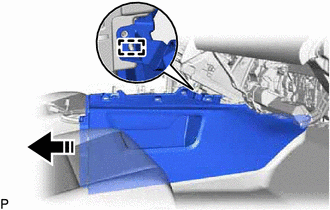

Remove in this Direction - Disengage the 4 clips to remove the No. 2 instrument cluster moulding as shown in the illustration.
Place Hand Here Remove in this Direction Order of Removal - w/ Interior Illumination:
- Disconnect the connector.
- Using a moulding remover A, disengage the 2 clips as shown in the illustration.
- REMOVE FRONT NO. 1 CONSOLE BOX INSERT
- REMOVE FRONT NO. 2 CONSOLE BOX INSERT
- DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
Refer to PROCEDURE - Step 3

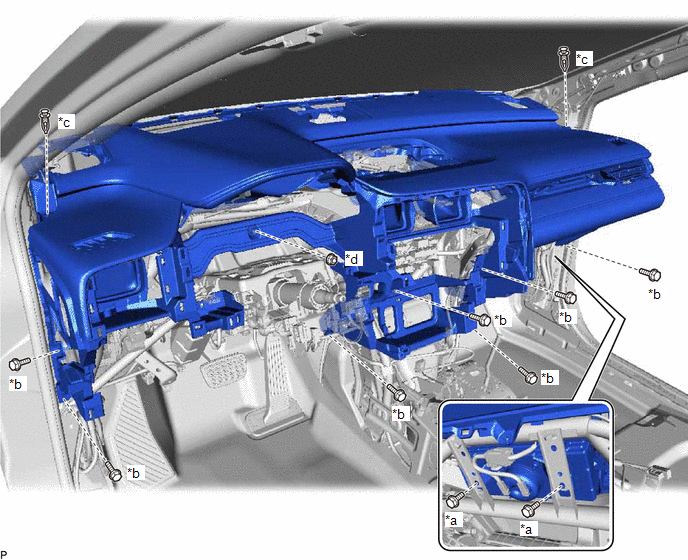

- REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

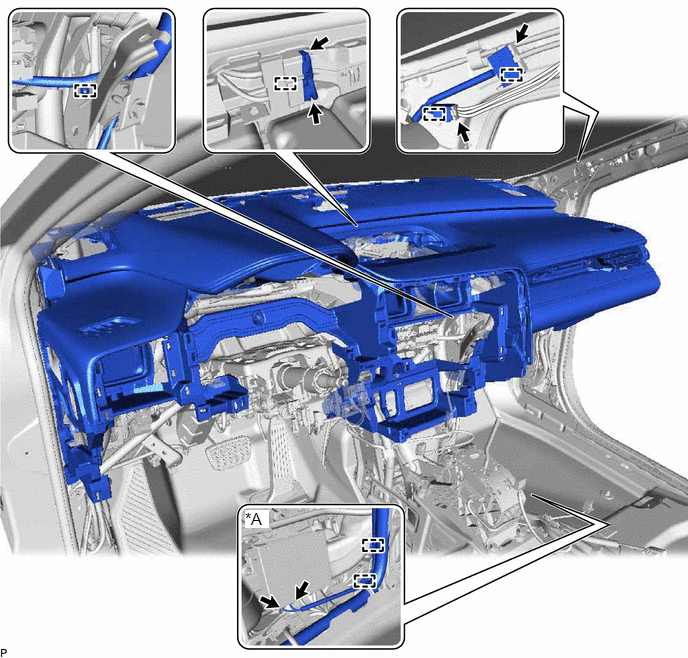

- Disconnect each connector.
*A w/ Telematics Transceiver - - - Disengage each clamp.
- Remove the 2 clips.
*a Bolt <A> *b Bolt <B> *c Clip *d Nut <E> - Remove the 7 bolts <B>, 2 bolts <A> and nut <E>.

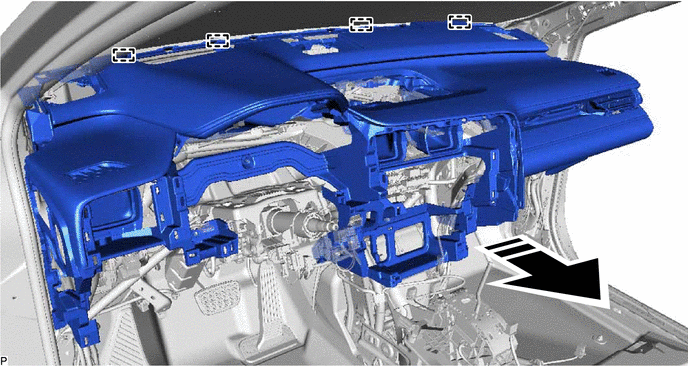

- Disengage the 4 guides and remove the instrument panel safety pad sub-assembly as shown in the illustration.
Remove in this Direction - - NOTE:- Do not damage the instrument panel safety pad sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.
- Disconnect each connector.
