Removal [10/2015 - 08/2019]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 19 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 19 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 19 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 19 [03/2018 - 08/2019]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 20 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 20 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 20 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 20 [03/2018 - 08/2019]

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 17 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 17 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 17 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 17 [03/2018 - 08/2019]

  4. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 18 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 18 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 18 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 18 [03/2018 - 08/2019]

  5. REMOVE MULTI-DISPLAY ASSEMBLY (for 8 Inch Display)

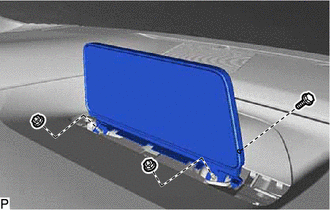

    1. Remove the bolt and 2 nuts.
      GTY649648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

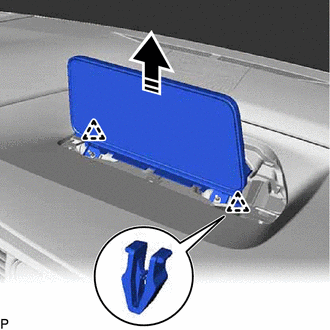

    2. Disengage the 2 clips as shown in the illustration.
      GTY625377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

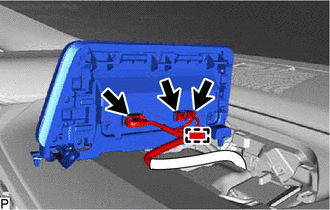

    3. Disengage the clamp.
      GTY649646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the multi-display assembly.
  6. REMOVE ACCESSORY METER ASSEMBLY (for 12.3 Inch Display)

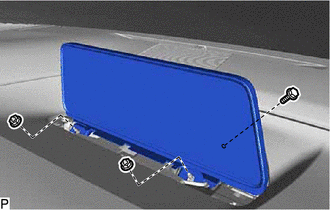

    1. Remove the bolt and 2 nuts.
      GTY649650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

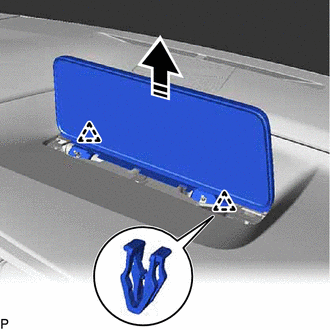

    2. Disengage the 2 clips as shown in the illustration.
      GTY658681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

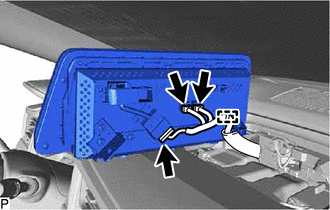

    3. Disengage the clamp.
      GTY649645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the accessory meter assembly.
