Removal [08/2016 - 03/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2016 - 12/2017] , or refer to PRECAUTION [12/2017 - 03/2018]

    Refer to PRECAUTION [08/2016 - 03/2018]

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019]

  3. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019]

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  5. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 2 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019]

  6. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]

  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 5 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019]

  8. REMOVE LOWER INSTRUMENT FINISH PANEL SUB

    Refer to PROCEDURE - Step 10 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 10 [12/2017 - 03/2018]

  9. REMOVE RADIO RECEIVER ASSEMBLY WITH REGISTER
    1. Remove the 2 bolts.

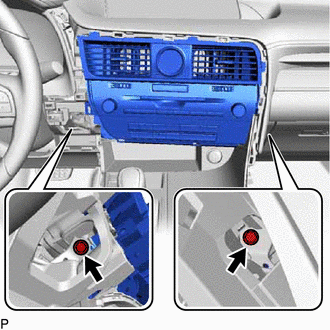

      GTY680697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the radio receiver assembly with register toward the rear of the vehicle to disengage the 7 clips.

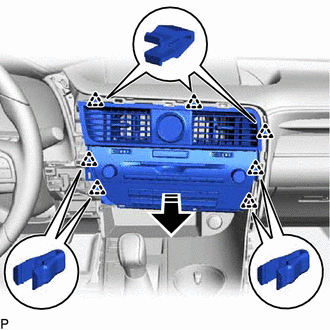

      GTY675214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector and remove the radio receiver assembly with register.
  10. REMOVE CLOCK ASSEMBLY

    Refer to PROCEDURE - Step 2 [08/2016 - 08/2019]

  11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws and remove the No. 3 instrument panel register assembly as shown in the illustration.

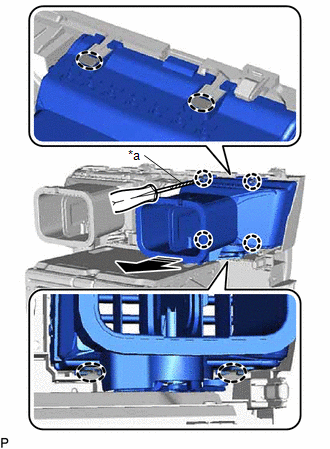

      GTY652290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
      Remove in this Direction

      HINT:

      Tape the screwdriver tip before use.

  12. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    HINT:

    Use the same procedure as for the No. 3 instrument panel register assembly.

  13. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 3 screws and No. 1 radio bracket.

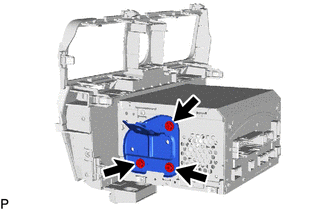

      GTY649663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 3 screws and No. 2 radio bracket.

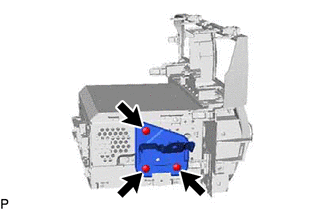

      GTY675395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIO RECEIVER ASSEMBLY
