Removal [08/2016 - 08/2019]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [08/2016 - 03/2018] , or refer to PRECAUTION [03/2018 - 08/2019]

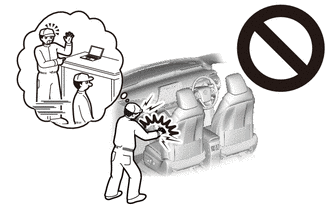

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2016 - 12/2017] , or refer to PRECAUTION [12/2017 - 03/2018] , or refer to PRECAUTION [03/2018 - 08/2019]

  2. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 03/2018] , or refer to REMOVAL [03/2018 - 08/2019]

  3. DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Slide the slider to release the lock, and then disconnect the connector.

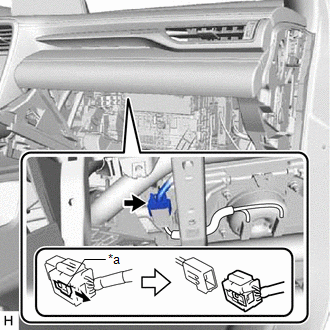

      GTY615538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slider
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

  4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 41 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 41 [03/2018 - 08/2019]

  5. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    WARNING:

    When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.

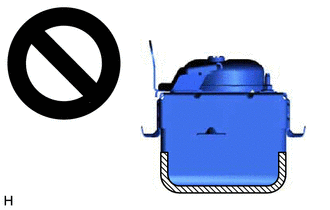

    GTY564462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Deployment Side
    1. Remove the 2 screws.

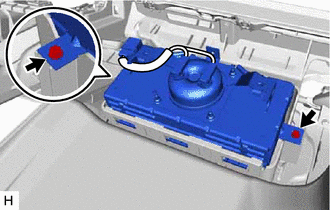

      GTY651061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY681004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

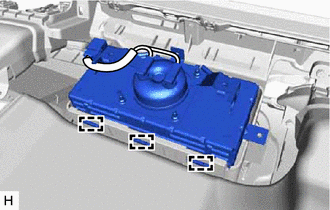

      Lean the instrument panel safety pad sub-assembly and disengage the 3 hooks.

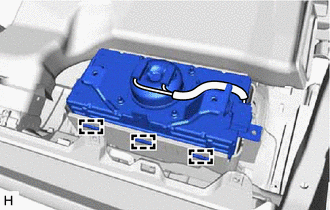

    3. GTY681006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.

  6. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. Disengage the clamp.

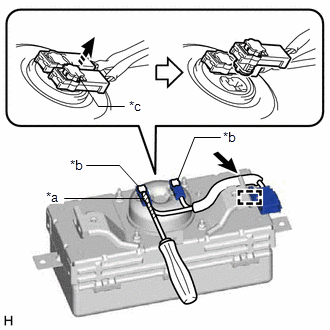

      GTY644348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Airbag Connector
      *c Airbag Connector Lock
      Wire Harness Clamp
    2. Separate the No. 2 instrument panel wire from the wire harness clamp.
    3. Using a screwdriver with its tip wrapped with protective tape, release the 2 airbag connector locks.
    4. Disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.
