Removal [08/2016 - 08/2019]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [08/2016 - 12/2017] , or refer to PRECAUTION [12/2017 - 03/2018] , or refer to PRECAUTION [03/2018 - 08/2019]
- REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 2 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019]
- REMOVE REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 4 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 4
- REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 2 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019]
- REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 3 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]
- REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
Refer to PROCEDURE - Step 5 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019]
- REMOVE LOWER INSTRUMENT FINISH PANEL SUB
Refer to PROCEDURE - Step 10 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 10 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 10 [03/2018 - 08/2019]

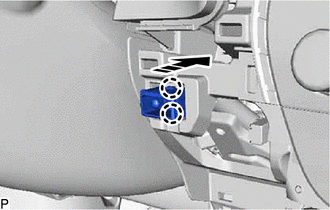

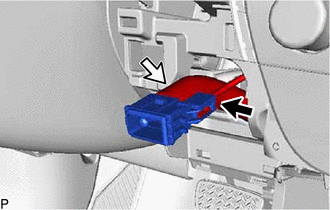

- REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR
