Removal [08/2016 - 03/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2016 - 12/2017] Refer to PRECAUTION [12/2017 - 03/2018]

  2. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS

    Refer to PROCEDURE - Step 2 [08/2016 - 12/2017] Refer to PROCEDURE - Step 2 [12/2017 - 08/2019]

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2 [08/2016 - 12/2017] Refer to PROCEDURE - Step 2 [12/2017 - 08/2019]

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4 [08/2016 - 12/2017] Refer to PROCEDURE - Step 4 [12/2017 - 08/2019]

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  6. REMOVE INSTRUMENT PANEL GARNISH LH

    Refer to PROCEDURE - Step 4 [08/2016 - 12/2017] Refer to PROCEDURE - Step 4 [12/2017 - 03/2018]

  7. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 9 [08/2016 - 12/2017] Refer to PROCEDURE - Step 9 [12/2017 - 08/2019]

  8. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 3

  9. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [08/2016 - 12/2017] Refer to PROCEDURE - Step 7 [12/2017 - 03/2018]

  10. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [08/2016 - 12/2017] Refer to PROCEDURE - Step 8 [12/2017 - 03/2018]

  11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [08/2016 - 12/2017] Refer to PROCEDURE - Step 9 [12/2017 - 03/2018]

  12. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 2 [10/2015 - 12/2017] Refer to PROCEDURE - Step 2 [12/2017 - 08/2019]

  13. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [10/2015 - 12/2017] Refer to PROCEDURE - Step 3 [12/2017 - 08/2019]

  14. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 5 [10/2015 - 12/2017] Refer to PROCEDURE - Step 5 [12/2017 - 08/2019]

  15. REMOVE LOWER INSTRUMENT FINISH PANEL SUB

    Refer to PROCEDURE - Step 10 [08/2016 - 12/2017] Refer to PROCEDURE - Step 10 [12/2017 - 03/2018]

  16. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

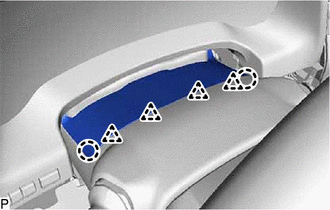

    1. Disengage the 2 claws and 4 clips to separate the instrument cluster finish panel sub-assembly.
      GTY681602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

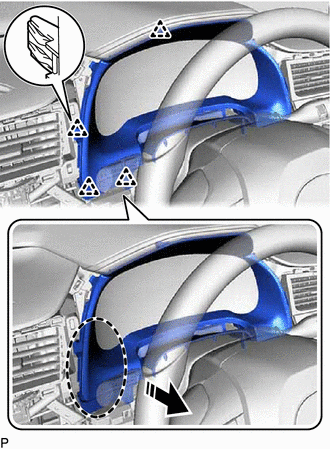

    2. Disengage the 4 clips as shown in the illustration.
      GTY635621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

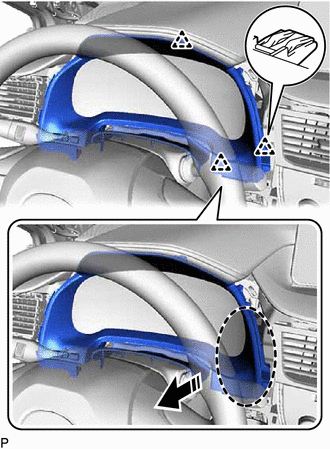

    3. Disengage the 3 clips as shown in the illustration.
      GTY632600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    4. Disconnect the connector to remove the instrument cluster finish panel sub-assembly.
  17. REMOVE COMBINATION METER ASSEMBLY

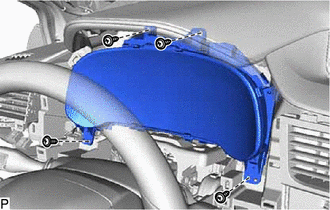

    1. Remove the 4 screws.
      GTY653796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disconnect each connector to remove the combination meter assembly.
