Removal [10/2015 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 28 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 28 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 28 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 28 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 25 [08/2019 - ]

  2. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for Side)
    NOTE:

    Do not touch the speaker cone.

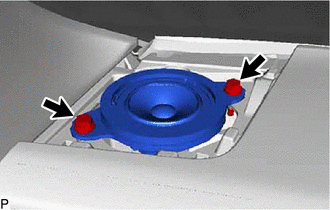

    1. Remove the 2 bolts.
      GTY645921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 2 speaker assembly and disconnect the connector to remove it.
  3. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)

    Refer to PROCEDURE - Step 31 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 31 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 31 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 31 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 28 [08/2019 - ]

  4. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for Center)
    NOTE:

    Do not touch the speaker cone.

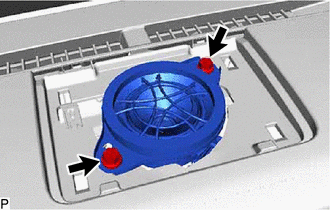

    1. Remove the 2 bolts.
      GTY645919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 3 speaker assembly and disconnect the connector to remove it.
