Installation [09/2015 - ]: Procedure
- INSTALL NO. 3 INSTRUMENT PANEL STAY
- Attach the 5 claws to install the 5 No. 3 instrument panel stays.
- INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY

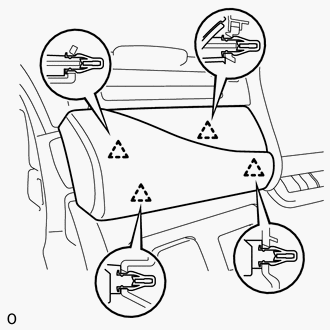

- Attach the 5 clips to install the instrument panel safety pad sub-assembly.
- Install the 2 bolts <E>.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

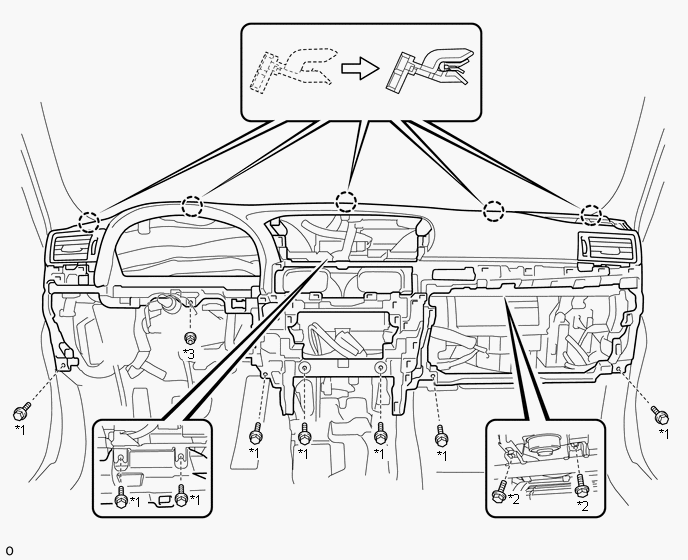

- Install the 8 bolts <A> and nut <F>.TEXT IN ILLUSTRATION
*1 Bolt <A> *2 Bolt <E> *3 Nut <F> - - - Attach the 2 claws to connect the cooler thermistor.
- Connect each connector and each wire harness clamp.
- INSTALL TIRE PRESSURE MONITOR RECEIVER ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)
Refer to PROCEDURE - Step 3
- INSTALL FRONT NO. 3 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 4
- INSTALL NO. 1 SPEAKER HOLE COVER
Refer to PROCEDURE - Step 5
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 1
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
HINT:
Use the same procedure described for the LH side.
- INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUBASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUBASSEMBLY
HINT:
Use the same procedure described for the No. 1 instrument panel speaker panel.
- INSTALL FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 33
- INSTALL FRONT PILLAR GARNISH RH
Refer to PROCEDURE - Step 34
- INSTALL ACCESSORY METER ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY

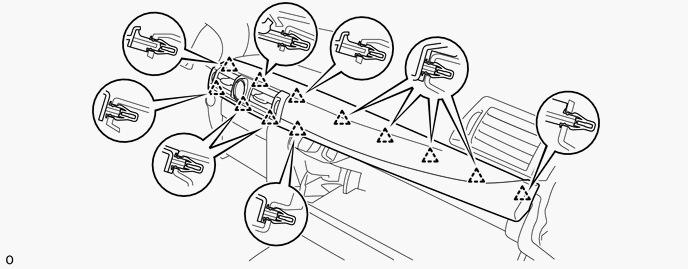

- Attach the 10 clips to install the instrument panel finish panel sub-assembly.
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
- Connect each connector and each wire harness clamp.
- Install the glove compartment door with the 5 screws <C>.
- INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL LOWER INSTRUMENT PANEL
Refer to PROCEDURE - Step 2
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUBASSEMBLY
- INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
- INSTALL MULTI-MEDIA MODULE RECEIVER ASSEMBLY
Refer to PROCEDURE - Step 3
- INSTALL INSTRUMENT SIDE PANEL RH

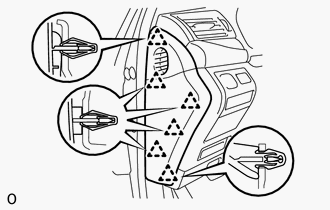

- Attach the 6 clips to install the instrument side panel RH.
- INSTALL CONSOLE BOX ASSEMBLY
- w/o Rear Seat Entertainment System:
(Refer to INSTALLATION [09/2015 - ] )
- w/ Rear Seat Entertainment System:
(Refer to INSTALLATION [09/2015 - ] )
- w/o Rear Seat Entertainment System:
- INSTALL COMBINATION METER ASSEMBLY

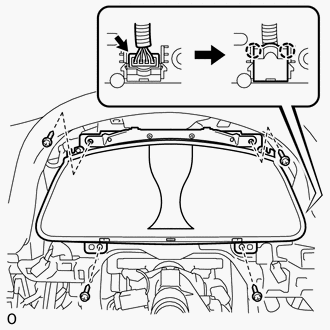

- Connect the connector and attach the 2 claws to close the connector cover.
- Install the combination meter assembly with the 4 screws.
- INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUBASSEMBLY
- Connect the 2 connectors.
- Attach the 2 clips to install the No. 2 instrument cluster finish panel sub-assembly.
- Install the 2 clips.
- INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
- (Refer to INSTALLATION [09/2015 - ] ).
- INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUBASSEMBLY
- Connect each connector and each wire harness clamp.
- Attach the 2 claws to connect the DLC3.

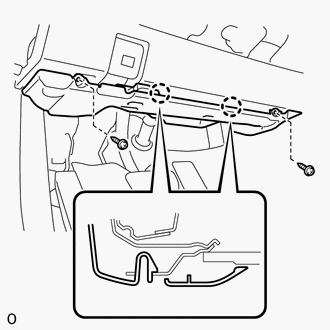

- Attach the 2 claws to install the No. 1 instrument panel under cover sub-assembly.
- Install the 2 screws.
- INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY
- INSTALL INSTRUMENT PANEL ORNAMENT
- INSTALL INSTRUMENT SIDE PANEL LH
- Attach the 6 clips to install the instrument side panel LH.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- ENABLE AUTOAWAY/RETURN FUNCTION
- Restore the autoaway/return function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] ).
- INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
- CHECK SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
