Installation [09/2015 - ]: Procedure

  1. INSTALL NO. 1 RADIO BRACKET
    1. Install the No. 1 radio bracket with the 3 bolts.
  2. INSTALL NO. 2 RADIO BRACKET
    1. Install the No. 2 radio bracket with the 3 bolts.
  3. INSTALL MULTI-MEDIA MODULE RECEIVER ASSEMBLY
    1. Connect the connectors.
    2. Insert the multi-media module receiver assembly with bracket.
      NOTE:

      When inserting the radio receiver, do not press the knobs on it.

    3. Attach the 6 clips.

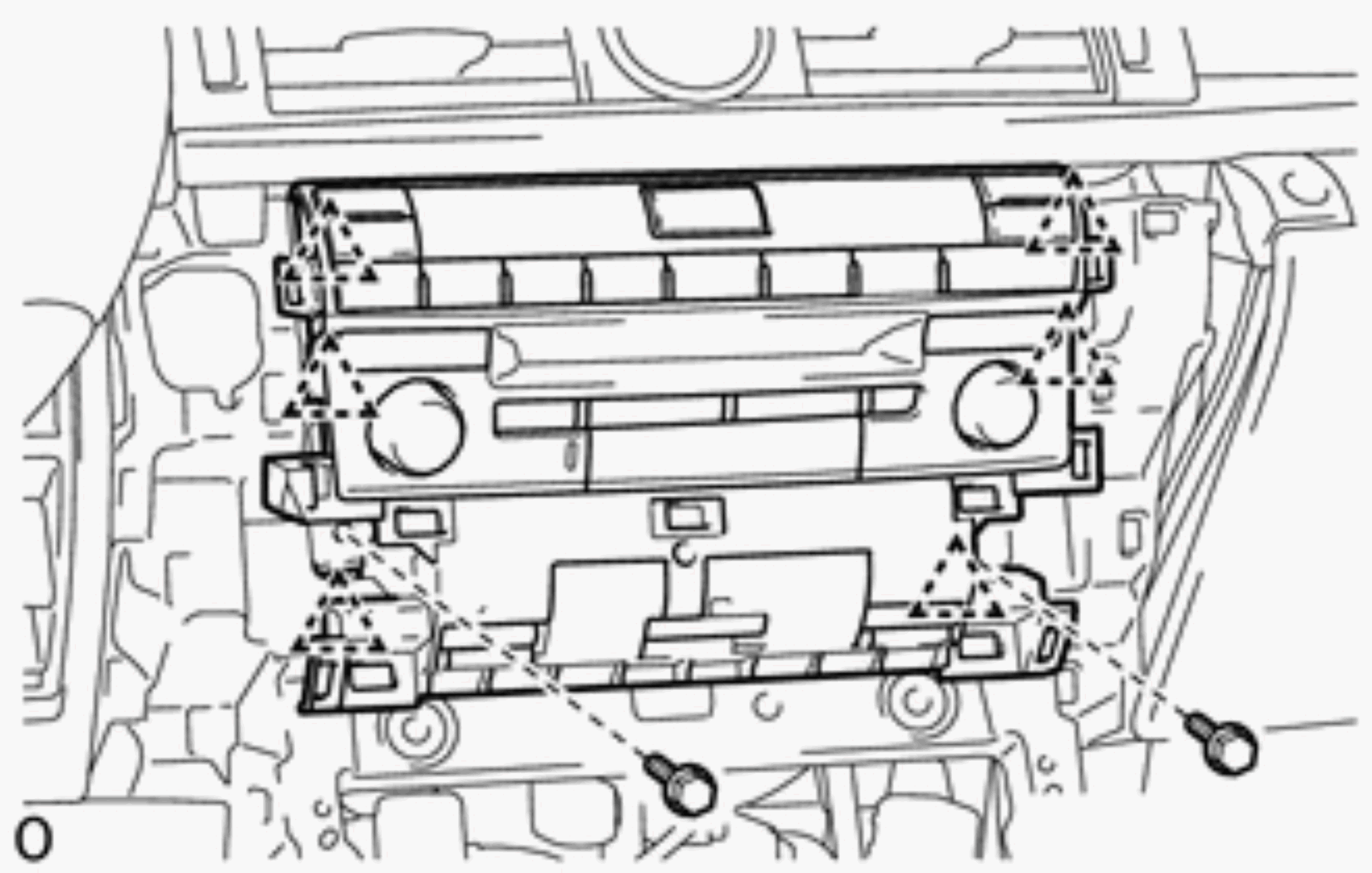

      GTY649244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the multi-media module receiver assembly with bracket with the 2 bolts.
  4. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 5

  5. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 4

  6. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. INSTALL UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 7

  8. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. INSTALL NO. 3 BOX PANEL

    Refer to PROCEDURE - Step 9

  10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 12

  12. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 11

  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  14. INSTALL COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 15
