Installation [09/2015 - ]: Procedure

INSTALL NO. 1 COMBINATION METER BRACKET
1. Install the No. 1 combination meter bracket with the 2 bolts.

INSTALL ACCESSORY METER ASSEMBLY

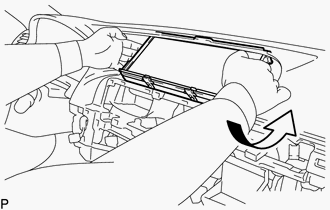

Move the accessory meter assembly in the direction of the arrow in the illustration to temporarily install it.

INSTALL INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY
Refer to PROCEDURE - Step 14
INSTALL MULTI-MEDIA MODULE RECEIVER ASSEMBLY
Refer to PROCEDURE - Step 3
INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 19
INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 5
INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 4
INSTALL UPPER CONSOLE PANEL SUBASSEMBLY
Refer to PROCEDURE - Step 6
INSTALL UPPER INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 7
INSTALL UPPER REAR CONSOLE PANEL SUBASSEMBLY
Refer to PROCEDURE - Step 8
INSTALL NO. 3 BOX PANEL
Refer to PROCEDURE - Step 9
INSTALL SHIFT LEVER KNOB SUBASSEMBLY
Refer to PROCEDURE - Step 10
INSTALL INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 12
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 11
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] )
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
