Installation [09/2015 - ]: Procedure

INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY

Check that the engine switch is off.
Check that the cable is disconnected from the negative (-) battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

Connect the airbag connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When connecting airbag connector, take care not to damage the airbag wire harness.

Push in the lock to connect the airbag connector.
Attach the claw to connect the hood lock control lever sub-assembly to the driver side knee airbag assembly.
Attach the clip to install the driver side knee airbag assembly.

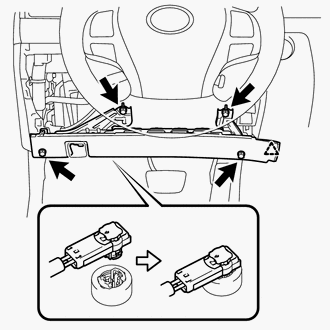

Install the 4 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTE:
Confirm that the driver side knee airbag assembly is installed securely without any excessive gaps and is not protruding outward.

INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 28
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 27
INSTALL INSTRUMENT PANEL ORNAMENT
Refer to PROCEDURE - Step 29
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 30
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 11
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
CHECK SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 17
