Installation [09/2015 - ]: Procedure
- INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
- Check that the engine switch is off.
- Check that the cable is disconnected from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Push in the lock to connect the airbag connector.
- Connect the airbag connector to the front passenger side knee airbag assembly.NOTE:
When connecting airbag connector, take care not to damage the airbag wire harness.

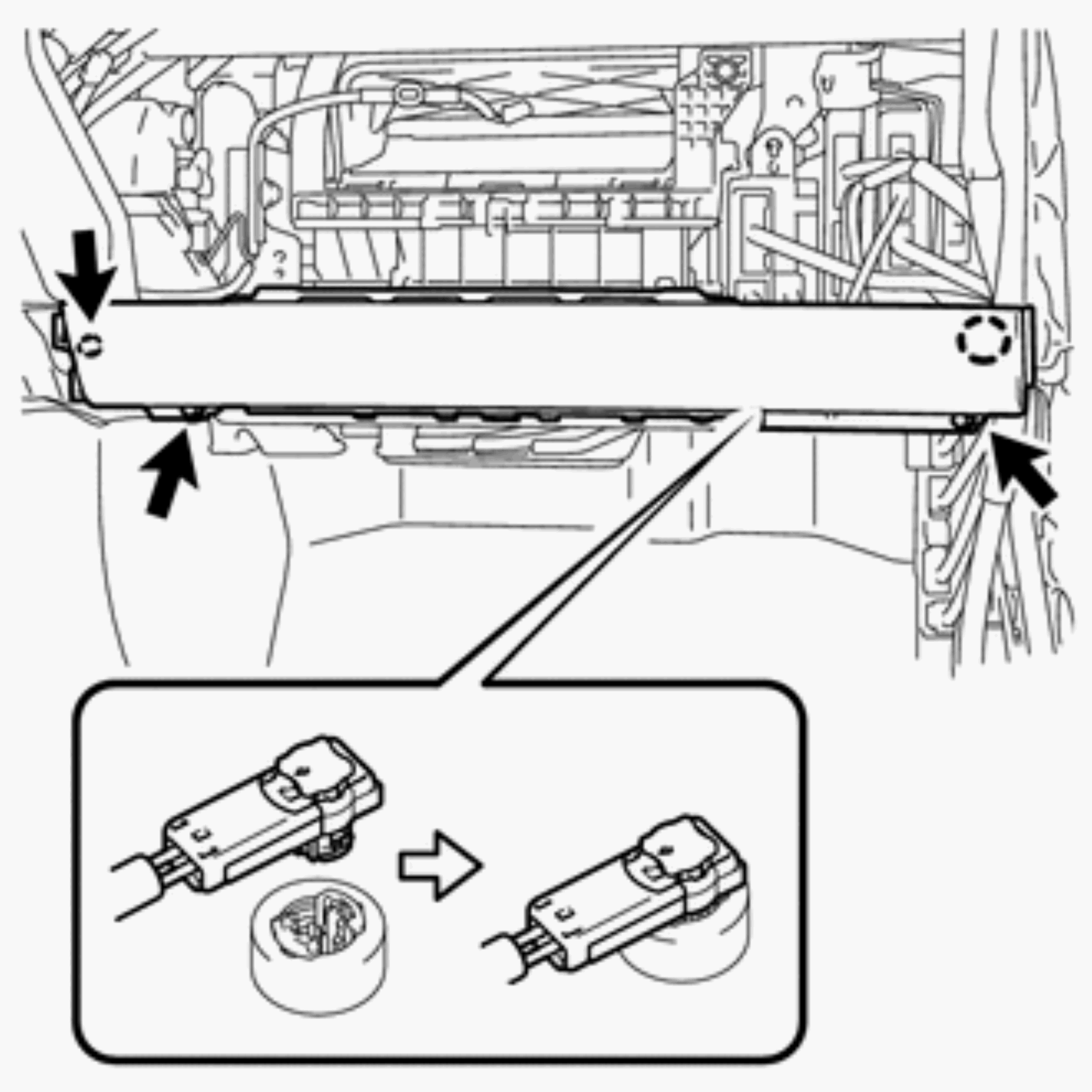

- Attach the claw to install the front passenger side knee airbag assembly.
- Install the 3 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
NOTE:Confirm that the front passenger side knee airbag assembly is installed securely without any excessive gaps and is not protruding outward.
- INSTALL LOWER INSTRUMENT PANEL
- Attach the 2 claws and clip to install the lower instrument panel.
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
- INSTALL INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 21
- INSTALL INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 12
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- CHECK SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
- INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 17
