Removal [04/2013 - 10/2017]: Procedure

  1. INSTALL ENGINE TO ENGINE STAND

    Refer to REMOVAL [04/2013 - 08/2015] , or refer to REMOVAL [08/2015 - 10/2016] , or refer to REMOVAL [10/2016 - 10/2017]

  2. REMOVE ENGINE WIRE

    Refer to PROCEDURE - Step 13

  3. REMOVE FUEL PUMP ASSEMBLY (for High Pressure)

    Refer to REMOVAL [04/2013 - 10/2017]

  4. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 4

  5. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 2WD)

    Refer to PROCEDURE - Step 7 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 9 [08/2015 - 10/2017]

  7. REMOVE OIL FILTER BRACKET (for AWD)

    Refer to PROCEDURE - Step 7 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 7 [08/2015 - 10/2017]

  8. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for AWD)

    Refer to PROCEDURE - Step 9 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 9 [08/2015 - 10/2017]

  9. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    1. For 2WD:

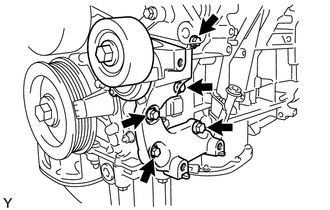

      1. Remove the 5 bolts and V-ribbed belt tensioner assembly.
        GTY402838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. For AWD:

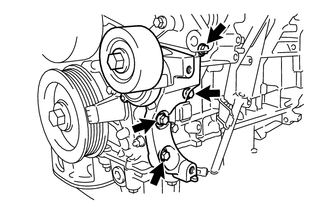

      1. Remove the 4 bolts and V-ribbed belt tensioner assembly.
        GTY105268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  11. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 10

  12. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 6

  13. REMOVE INJECTOR DRIVER

    Refer to PROCEDURE - Step 7

  14. REMOVE NO. 2 ENGINE COVER

    Refer to PROCEDURE - Step 2

  15. REMOVE WATER INLET ASSEMBLY

    Refer to PROCEDURE - Step 29

  16. REMOVE CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 4

  17. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  18. REMOVE OIL STRAINER WITH PIPE SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 36

  19. REMOVE OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  20. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38

  21. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 4

  22. REMOVE NO. 1 OIL PIPE

    Refer to PROCEDURE - Step 21

  23. REMOVE NO. 2 OIL PIPE

    Refer to PROCEDURE - Step 22

  24. REMOVE FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  25. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 33

  26. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  27. REMOVE SPARK PLUG TUBE GASKET

    Refer to PROCEDURE - Step 34

  28. REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY

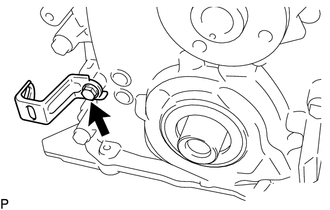

    1. Remove the bolt and wire harness clamp bracket.
      GTY402891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

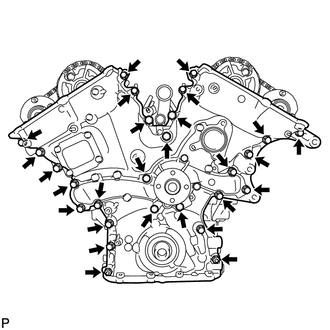

    2. Remove the 25 bolts and 2 nuts.
      GTY409821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

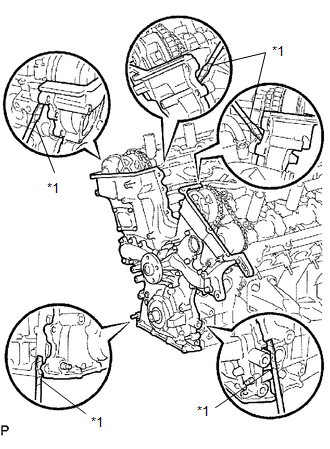

    3. Remove the timing chain or belt cover sub-assembly by prying between the timing chain or belt cover sub-assembly and cylinder head sub-assembly, cylinder head LH or cylinder block sub-assembly with a screwdriver.
      GTY469234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder head sub-assembly, cylinder head LH, cylinder block sub-assembly and timing chain or belt cover sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

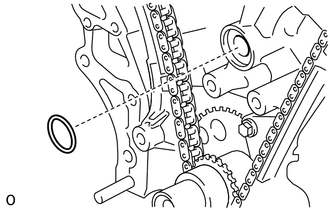

    4. Remove the gasket.
      GTY213852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

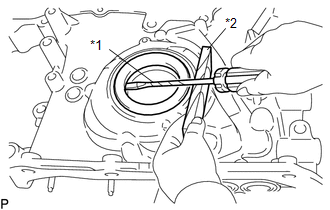

    1. Using a screwdriver and wooden block, pry out the timing gear case or timing chain case oil seal.
      GTY470464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
      *2 Wooden Block
      NOTE:

      Be careful not to damage the timing chain or belt cover sub-assembly and oil pump rotor set.

      HINT:

      Tape the screwdriver tip before use.
