Rear Seat Cushion Frame Replacement (Tahoe/Yukon/Escalade with Split Bench)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

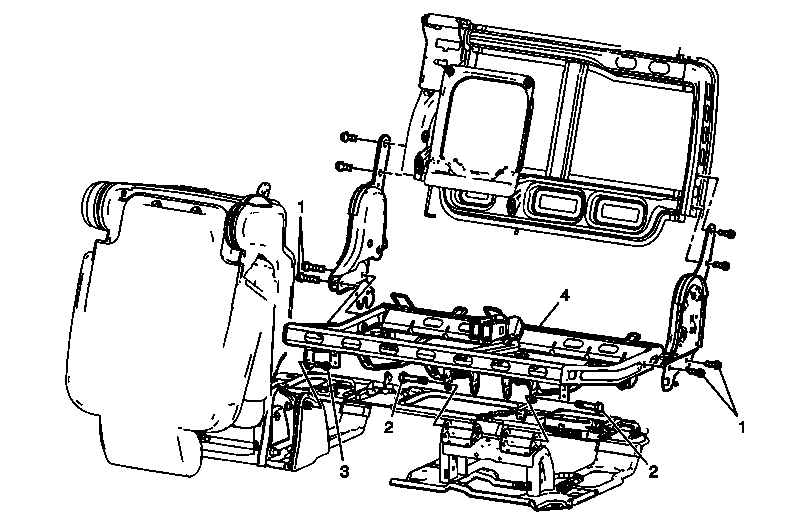

Fig 1: View Of Rear Seat Cushion Frame & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear seat. Refer to Rear Seat Replacement (Avalanche/Escalade EXT) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Bucket) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Split Bench) . Remove the recliner handle. Refer to Seat Back Recliner Handle Replacement - Rear (Tahoe/Yukon/Escalade with Bucket) . Remove the outer finish cover. Refer to Seat Cushion Outer Trim Panel Replacement - Rear Seat (Tahoe/Yukon/Escalade with Bucket) or Seat Cushion Outer Trim Panel Replacement - Rear Seat (Tahoe/Yukon/Escalade with Split Bench) . Remove the inner finish cover. Refer to Seat Cushion Inner Panel Replacement - Rear (Tahoe/Yukon/Escalade with Bucket) or Seat Cushion Inner Panel Replacement - Rear (Tahoe/Yukon/Escalade with Split Bench) . Remove the cushion lower trim cover. Refer to Seat Cushion Trim Panel Replacement - Rear No.1 (Avalanche/Escalade EXT) or Seat Cushion Trim Panel Replacement - Rear No.1 (Tahoe/Yukon/Escalade with Bucket) or Seat Cushion Trim Panel Replacement - Rear No.1 (Tahoe/Yukon/Escalade with Split Bench) . Remove the seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (Avalanche/Escalade EXT) or Rear Seat Cushion Cover and Pad Replacement (Tahoe/Yukon/Escalade with Bucket) or Rear Seat Cushion Cover and Pad Replacement (Tahoe/Yukon/Escalade with Split Bench) .
1	Rear Seat Recliner Bolt (Qty: 4) Tighten: 9 N.m (80 lb in)
2	Rear Seat Riser Outer Bolt (Qty: 2) Tighten: 9 N.m (80 lb in)
3	Rear Seat Riser Inner Bolt Tighten: 9 N.m (80 lb in)
4	Rear Seat Cushion Frame Tip: Disconnect the rear seat strut from the seat cushion frame.
