Rear Seat Replacement (Avalanche/Escalade EXT)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

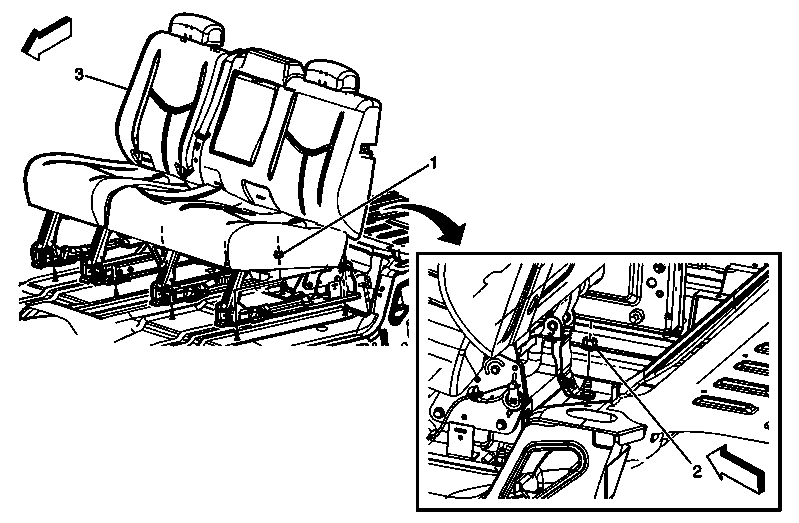

Fig 1: View Of Rear Seat Assembly, Nuts & Rear Seat Belt Buckle Anchor Nut
GM1679196Courtesy of GENERAL MOTORS CORP.
Rear Seat Replacement (Avalanche/Escalade EXT)

Callout Component Name
  1. Remove the jack access cover and jack from the vehicle.
  2. Remove the rear seat track finish cover.
1 Rear Seat Assembly Nut (Qty: 7)
Tip:  Remove the adjuster cover to access the nuts.
NOTE: Refer to Fastener Notice .

Tighten:  45 N.m (33 lb ft)
2 Rear Seat Belt Buckle Anchor Nut
Tip:  The nut is located behind the seat.

Tighten:  45 N.m (33 lb ft)
3 Rear Seat Assembly
Tip:  Disconnect the electrical connector, if equipped.
