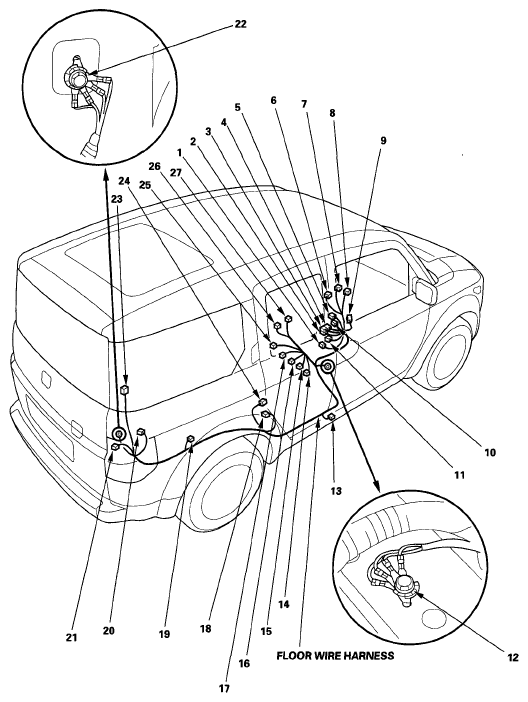

Floor Wire Harness (Right branch)
CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front passenger's seat belt buckle switch | 16 | 3 | Under front passenger's seat | ||
| Front passenger's seat belt buckle tensioner | 15 | 4 | Under front passenger's seat | ||
| Front passenger's side airbag inflator | 17 | 2 | Under front passenger's seat | ||
| Rear accessory power socket | 20 | 2 | Right quarter panel | Except LX model | |
| Rear safing sensor | 27 | 4 | Under center console | ||
| Right side impact sensor (first) | 13 | 2 | Right side of floor | ||
| Right side impact sensor (second) | 18 | 2 | Right quarter panel | ||
| Right taillight | 21 | 5 | Right quarter panel | ||
| SRS unit connector C | 7 | 28 | Under middle of dash | ||
| SRS unit connector B | 8 | 28 | Under middle of dash | ||
| VSA sensor cluster | 26 | 6 | Under center console | ||
| XM receiver connector A | 19 | 14 | Behind right rear side trim | With XM radio | |
| C404 | 2 | 6 | Under middle of dash | Dashboard wire harness B
|
|
| C455 | 11 | 17 | Under middle of dash | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) | '07-08 models |
| C455 | 11 | 23 | Under middle of dash | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) | '09 model |
| C456 | 1 | 10 | Under middle of dash | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) | |
| C551 | 4 | 4 | Under middle of dash | Dashboard wire harness A
|
|
| C552 | 5 | 4 | Under middle of dash | Dashboard wire harness A
|
|
| C553 | 6 | 14 | Under middle of dash | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) ) | |
| C556 | 24 | 6 | Right quarter panel | Right rear door subharness (see RIGHT REAR DOOR SUBHARNESS ) | |
| C558 | 25 | 14 | Under center console | VSA/fuel pump harness (see VSA/FUEL PUMP WIRE HARNESS ) | |
| C559 (Junction connector) | 9 | 20 | Under middle of dash | ||
| C560 | 14 | 4 | Under front passenger's seat | ODS unit harness (see ODS UNIT HARNESS ) | |
| C561 | 10 | 23 | Under middle of dash | Dashboard wire harness A
|
|
| C562 | 3 | 8 | Under middle of dash | Dashboard wire harness A '07-08 models (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ('07-08 MODELS) ) | |
| C562 | 3 | 12 | Under middle of dash | Dashboard wire harness A
|
|
| C604 | 23 | 4 | Right quarter panel | Roof wire harness
|
|
| G551 | 22 | Right D-pillar | Body ground, via floor wire harness | ||
| G552 | 12 | Under front passenger's seat | Body ground, via floor wire harness |
